AWS Lambda: building a serverless back-end on Amazon

Hello, dear readers! welcome to my blog. On this post, we will learn about AWS Lambda, a serverless architectural solution that enables us to quickly deploy serverless back-end infrastructures. But why using this service, instead of good old EC2s?Let’s find it out!

Motivation behind AWS Lambda

Alongside the benefits of developing a back-end using the serverless paradigm – which can be learned on more detail on this other post of mine – another good point on using AWS is pricing.

When deploying your application with a EC2, be a on-demand, spot or reserved one, we are charged by hour. This is true even if our application is not called at all during that hour, resulting on wasted resources and money.

With AWS lambda, Amazon charge us by processing time, as such, it only charges us the time spent on lambdas execution. This results on a much cleaner architecture, where less resources and money are spent. This post details the case on more detail.

AWS Lambda development is based on functions. When developing a lambda, we develop a function that can run as a REST endpoint – served by Amazon API Gateway – or a event processing function, running on events such as a file been uploaded to a S3 bucket.

Limitations

However, not all is simple on this service. When developing with AWS Lambda, two things must be kept in mind: cold starts and resource restrictions.

Cold starts consist of the first time a lambda is called, or after some time is passed and the server – behind the scenes, obviously there are servers that runs the functions, but this is hidden from the user – used to run the lambda is already down due to inactivity. Amazon has algorithms that make the server be up and serving as long as there is a consistent frequency of client calls, but off course, from time to time, there will be idle times.

When a cold start is made, this causes the requests to have a more slow response, since it will wait for a server to be up and running to run the function. This can be worsen if clients have low timeout configurations, resulting on requests failing. This should be taking on account when developing lambdas that act as APIs.

Another important aspect to take note are resource restrictions. Been designed to be used for small functions (“microservices”), lambdas have several limitations, such as amount of memory, disk and cpu. This limits can be increased, but only by a small amount. This link on AWS docs details more about the limits.

One important limit is the running time of the lambda itself. A AWS Lambda can run at most 5 minutes. This is a important limit to understand the nature of what lambdas must be in nature: simple functions, that must not run by long periods of time.

If any of this limits are reached, the lambda will fail his execution.

Lab

For this lab, we will use a framework called Serverless. Serverless is a framework that automates for us some tasks that are a little boring to do if developing with AWS Lambda by hand, such as creating a zip file with all our sources to be uploaded to S3 and creating/configuring all AWS resources. Serverless uses CloudFormation under the hood, managing resource creation and updates for us. For programming language, we will use Python 3.6.

To install Serverless, please follow this guide.

With Serverless installed, let’s begin our lab! First, let’s create a project, by running:

serverless create --template aws-python3 --path MyAmazingAWSLambdaService

This command will create a new Serverless project, using a initial template for our first Python lambda. Let’s open the project – I will be using PyCharm, but any IDE or editor of choice will suffice – and see what the framework created for us.

Project structure

Serverless created a simple project structure, consisting of a serverless YAML file and a Python script. It is on the YAML that we declare our functions, the cloud provider, IAM permissions, resources to be created etc.

The file created by the command is as follows:

# Welcome to Serverless!
#
# This file is the main config file for your service.
# It's very minimal at this point and uses default values.
# You can always add more config options for more control.
# We've included some commented out config examples here.
# Just uncomment any of them to get that config option.
#
# For full config options, check the docs:
#    docs.serverless.com
#
# Happy Coding!

service: MyAmazingAWSLambdaService

# You can pin your service to only deploy with a specific Serverless version
# Check out our docs for more details
# frameworkVersion: "=X.X.X"

provider:
  name: aws
  runtime: python3.6

# you can overwrite defaults here
#  stage: dev
#  region: us-east-1

# you can add statements to the Lambda function's IAM Role here
#  iamRoleStatements:
#    - Effect: "Allow"
#      Action:
#        - "s3:ListBucket"
#      Resource: { "Fn::Join" : ["", ["arn:aws:s3:::", { "Ref" : "ServerlessDeploymentBucket" } ] ]  }
#    - Effect: "Allow"
#      Action:
#        - "s3:PutObject"
#      Resource:
#        Fn::Join:
#          - ""
#          - - "arn:aws:s3:::"
#            - "Ref" : "ServerlessDeploymentBucket"
#            - "/*"

# you can define service wide environment variables here
#  environment:
#    variable1: value1

# you can add packaging information here
#package:
#  include:
#    - include-me.py
#    - include-me-dir/**
#  exclude:
#    - exclude-me.py
#    - exclude-me-dir/**

functions:
  hello:
    handler: handler.hello

#    The following are a few example events you can configure
#    NOTE: Please make sure to change your handler code to work with those events
#    Check the event documentation for details
#    events:
#      - http:
#          path: users/create
#          method: get
#      - s3: ${env:BUCKET}
#      - schedule: rate(10 minutes)
#      - sns: greeter-topic
#      - stream: arn:aws:dynamodb:region:XXXXXX:table/foo/stream/1970-01-01T00:00:00.000
#      - alexaSkill
#      - alexaSmartHome: amzn1.ask.skill.xx-xx-xx-xx
#      - iot:
#          sql: "SELECT * FROM 'some_topic'"
#      - cloudwatchEvent:
#          event:
#            source:
#              - "aws.ec2"
#            detail-type:
#              - "EC2 Instance State-change Notification"
#            detail:
#              state:
#                - pending
#      - cloudwatchLog: '/aws/lambda/hello'
#      - cognitoUserPool:
#          pool: MyUserPool
#          trigger: PreSignUp

#    Define function environment variables here
#    environment:
#      variable2: value2

# you can add CloudFormation resource templates here
#resources:
#  Resources:
#    NewResource:
#      Type: AWS::S3::Bucket
#      Properties:
#        BucketName: my-new-bucket
#  Outputs:
#     NewOutput:
#       Description: "Description for the output"
#       Value: "Some output value"

For now, let’s just remove all comments in order to have a cleaner file. The other file is a Python script, which have our first function. Let’s see it:

import json


def hello(event, context):
    body = {
        "message": "Go Serverless v1.0! Your function executed successfully!",
        "input": event
    }

    response = {
        "statusCode": 200,
        "body": json.dumps(body)
    }

    return response

    # Use this code if you don't use the http event with the LAMBDA-PROXY
    # integration
    """
    return {
        "message": "Go Serverless v1.0! Your function executed successfully!",
        "event": event
    }
    """

As we can see, is a pretty simple script. All we have to do is create a function that receives 2 parameters, context and event. Event is used to pass the input data on which the lambda will work. Context is used by AWS to pass information about the environment on which the lambda is running. For example, if we wanted to know how much time is left before our running time limit is reached, we could do the following call:

print("Time remaining (MS):", context.get_remaining_time_in_millis())

The dictionary returned by the function is the standard response for a lambda that acts as a API, proxied by AWS API Gateway.

For now, let’s leave the script as it is, as we will add more functions to the project. Let’s begin by adding the Dynamodb table we will use on our lab, alongside other configurations.

Creating Dynamodb table

In order to create the table, we modify our YAML as follows:

service: MyAmazingAWSLambdaService

provider:
  name: aws
  runtime: python3.6
  stage: ${opt:stage, 'dev'}
  region: ${opt:region, 'us-east-1'}
  profile: personal

functions:
  hello:
    handler: handler.hello

resources:
  Resources:
    product:
      Type: AWS::DynamoDB::Table
      Properties:
        TableName: product
        AttributeDefinitions:
          - AttributeName: id
            AttributeType: S
        KeySchema:
          - AttributeName: id
            KeyType: HASH
        ProvisionedThroughput:
          ReadCapacityUnits: 1
          WriteCapacityUnits: 1

We added a resources section, where we defined a dynamodb table called product and defined a atribute called id to be key in table’s items. We also defined the stage and region to be collected as command-line options – stages are used as application environments, such as QA and Production. Finally, we defined that we want the deploys to use a IAM profile called personal. This is useful when having several accounts on the same machine.

Let’s deploy the stack by entering:

serverless deploy --stage prod

After some time, we will see that our stack was successfully deployed, as we can see on the console:

Serverless: Packaging service...
Serverless: Excluding development dependencies...
Serverless: Creating Stack...
Serverless: Checking Stack create progress...
.....
Serverless: Stack create finished...
Serverless: Uploading CloudFormation file to S3...
Serverless: Uploading artifacts...
Serverless: Uploading service .zip file to S3 (3.38 KB)...
Serverless: Validating template...
Serverless: Updating Stack...
Serverless: Checking Stack update progress...
..................
Serverless: Stack update finished...
Service Information
service: MyAmazingAWSLambdaService
stage: prod
region: us-east-1
stack: MyAmazingAWSLambdaService-prod
api keys:
 None
endpoints:
 None
functions:
 hello: MyAmazingAWSLambdaService-prod-hello

During the deployment, Serverless generated a zip file with all our resources, uploaded to a bucket, created a CloudFormation stack and deployed our lambda with it, alongside the necessary permissions to run. It also created our dynamodb table, as required.

Now that we have our stack and table, let’s begin by creating a group of lambdas to implement CRUD operations on our table.

Creating CRUD lambdas

Now, let’s create our lambdas. First, let’s create a Python class to encapsulate the operations on our dynamodb table:

# -*- coding: UTF-8 -*-

import boto3

dynamodb = boto3.resource('dynamodb')


class DynamoDbHelper:

    def __init__(self, **kwargs):
        self.table = dynamodb.Table(kwargs.get('table', """missing"""))

    def save(self, entity):
        """
           save entity from DYNAMODB_self.table
        """
        saved = self.table.put_item(Item=entity)
        print('Saving result: ({})'.format(saved))

    def get(self, entity_id):
        """
         get entity from DYNAMODB_self.table
      """
        entity = self.table.get_item(Key={'id': entity_id})

        if 'Item' in entity:
            return entity['Item']
        else:
            return None

    def delete(self, entity_id):
        """
           delete entity from DYNAMODB_self.table
        """
        deleted = self.table.delete_item(Key={'id': entity_id})
        print('Deleting result: ({})'.format(deleted))

Then, we create another script to make a converter. This will be used to read the input data from lambda calls to dynamodb’s data:

# -*- coding: UTF-8 -*-
import json


class ProductConverter:

    def convert(self, event):
        """
           convert entity from input to dictionary to be saved on dynamodb
        """
        if isinstance(event['body'], dict):
            data = event['body']
        else:
            data = json.loads(event['body'])
        return {
            'id': data['id'],
            'name': data.get('name', ''),
            'description': data.get('description', ''),
            'price': data.get('price', '')
        }

Next, we change the script created by Serverless, creating the lambda handlers:

# -*- coding: UTF-8 -*-

import json

from helpers.DynamoDbHelper import DynamoDbHelper
from helpers.ProductConverter import ProductConverter


def get_path_parameters(event, name):
    return event['pathParameters'][name]


dynamodb_helper = DynamoDbHelper(table='product')
product_converter = ProductConverter()


def save(event, context):
    product = product_converter.convert(event)

    if 'id' not in event['body']:
        return {
            "statusCode": 422,
            "body": json.dumps({'message': 'Product ID is required!'})
        }

    try:
        dynamodb_helper.save(product)
        response = {
            "statusCode": 200,
            "body": json.dumps({'message': 'saved successfully'})
        }
    except Exception as e:
        return {
            "statusCode": 500,
            "body": json.dumps({'message': str(e)})
        }

    return response


def get(event, context):
    product = dynamodb_helper.get(get_path_parameters(event, 'product_id'))

    if product is not None:
        response = {
            "statusCode": 200,
            "body": json.dumps(product)
        }
    else:
        response = {
            "statusCode": 404,
            "body": json.dumps({'message': 'not found'})
        }
    return response


def delete(event, context):
    try:
        dynamodb_helper.delete(get_path_parameters(event, 'product_id'))
        response = {
            "statusCode": 200,
            "body": json.dumps({'message': 'deleted successfully'})
        }
    except Exception as e:
        return {
            "statusCode": 500,
            "body": json.dumps({'message': str(e)})
        }

    return response

Finally, we change serverless.yml, defining our lambdas to be deployed on AWS:

service: MyAmazingAWSLambdaService

provider:
  name: aws
  runtime: python3.6
  stage: ${opt:stage, 'dev'}
  region: ${opt:region, 'us-east-1'}
  profile: personal

  iamRoleStatements: # permissions for all of your functions can be set here
      - Effect: Allow
        Action:
          - dynamodb:*
        Resource: "arn:aws:dynamodb:us-east-1:<your_account_id>:table/product"

functions:
  save_product:
    handler: handler.save
    events:
      - http:
          path: product/save
          method: post
  update_product:
    handler: handler.save
    events:
      - http:
          path: product/update
          method: patch
  get_product:
    handler: handler.get
    events:
      - http:
          path: product/{product_id}
          method: get
  delete_product:
    handler: handler.delete
    events:
      - http:
          path: product/{product_id}
          method: delete

resources:
  Resources:
    product:
      Type: AWS::DynamoDB::Table
      Properties:
        TableName: product
        AttributeDefinitions:
          - AttributeName: id
            AttributeType: S
        KeySchema:
          - AttributeName: id
            KeyType: HASH
        ProvisionedThroughput:
          ReadCapacityUnits: 1
          WriteCapacityUnits: 1

After running the deployment again, we can see the functions were deployed, as seen on terminal:

Serverless: Packaging service...
Serverless: Excluding development dependencies...
Serverless: Uploading CloudFormation file to S3...
Serverless: Uploading artifacts...
Serverless: Uploading service .zip file to S3 (4.92 KB)...
Serverless: Validating template...
Serverless: Updating Stack...
Serverless: Checking Stack update progress...
........................................................................................
Serverless: Stack update finished...
Service Information
service: MyAmazingAWSLambdaService
stage: prod
region: us-east-1
stack: MyAmazingAWSLambdaService-prod
api keys:
 None
endpoints:
 POST - https://xxxxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/product/save
 PATCH - https://xxxxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/product/update
 GET - https://xxxxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/product/{product_id}
 DELETE - https://xxxxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/product/{product_id}
functions:
 save_product: MyAmazingAWSLambdaService-prod-save_product
 update_product: MyAmazingAWSLambdaService-prod-update_product
 get_product: MyAmazingAWSLambdaService-prod-get_product
 delete_product: MyAmazingAWSLambdaService-prod-delete_product

PS: the rest api id was intentionally masked by me for security reasons.

On terminal, we can also see the URLs to call our lambdas. On AWS lambda, the URLs follows this pattern:

https://{restapi_id}.execute-api.{region}.amazonaws.com/{stage_name}/

Later on our lab we will learn how to test our lambdas. For now, let’s learn how to create our last lambda, the one that will read from S3 events.

Creating S3 lambda to bulk create to Dynamodb

Now, let’s implement a lambda that will bulk process product inserts. This lambda will use a csv file as parameter, receiving chunks of data. The lambda will process the data as a stream, using the streaming interface from boto3 behind the hood, saving products as it reads them. To facilitate, we will use Pandas Python library to read the csv . The lambda code is as follows:

# -*- coding: UTF-8 -*-

import boto3
import pandas as pd
import io

from helpers.DynamoDbHelper import DynamoDbHelper

s3 = boto3.client('s3')
dynamodb_helper = DynamoDbHelper(table='product')


def bulk_insert(event, context):
    for record in event['Records']:
        bucket = record['s3']['bucket']['name']
        key = record['s3']['object']['key']
        print('Bucket: ' + bucket)
        print('Key: ' + key)
        obj = s3.get_object(Bucket=bucket, Key=key)
        products = pd.read_csv(io.BytesIO(obj['Body'].read()))
        products_records = products.fillna('').to_dict('records')
        for product in products_records:
            record = {
                'id': str(product['id']),
                'name': product.get('name', ''),
                'description': product.get('description', ''),
                'price': str(product.get('price', '0'))
            }
            dynamodb_helper.save(record)

You may notice that we iterate over a list to read bucket files. That’s because AWS can bulk S3 changes to call our lambda fewer times, so we need to read all references that are sent to us.

Before moving on to serverless.yml changes, we need to install a plugin called serverless-python-requirements. This plugin is responsible for adding our pip requirements to lambda packaging.

First, let’s create a file called package.json, with the following. This file must be created by the npm init command:

{
  "name": "myamazingawslambdaservice",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "author": "",
  "license": "ISC"
}

Next, let’s install the plugin, using npm:

npm install --save serverless-python-requirements

And finally, add the plugin to serverless.yml. Here it is all the changes needed for the new lambda:

service: MyAmazingAWSLambdaService

plugins:
  - serverless-python-requirements

custom:
  pythonRequirements:
    dockerizePip: non-linux

provider:
  name: aws
  runtime: python3.6
  stage: ${opt:stage, 'dev'}
  region: ${opt:region, 'us-east-1'}
  profile: personal

  iamRoleStatements: # permissions for all of your functions can be set here
      - Effect: Allow
        Action:
          - dynamodb:*
        Resource: "arn:aws:dynamodb:us-east-1:<your_account_id>:table/product"
      - Effect: Allow
        Action:
          - s3:GetObject
        Resource: "arn:aws:s3:::myamazingbuckets3/*"

functions:
  bulk_insert:
    handler: bulk_handler.bulk_insert
    events:
      - s3:
          bucket: myamazingbuckets3
          event: s3:ObjectCreated:*
  save_product:
    handler: handler.save
    events:
      - http:
          path: product/save
          method: post
  update_product:
    handler: handler.save
    events:
      - http:
          path: product/update
          method: patch
  get_product:
    handler: handler.get
    events:
      - http:
          path: product/{product_id}
          method: get
  delete_product:
    handler: handler.delete
    events:
      - http:
          path: product/{product_id}
          method: delete

resources:
  Resources:
    product:
      Type: AWS::DynamoDB::Table
      Properties:
        TableName: product
        AttributeDefinitions:
          - AttributeName: id
            AttributeType: S
        KeySchema:
          - AttributeName: id
            KeyType: HASH
        ProvisionedThroughput:
          ReadCapacityUnits: 1
          WriteCapacityUnits: 1

PS: because of the plugin, is now needed to have Docker running on deployment. This is because the plugin uses Docker to compile Python packages that requires OS binaries to be installed. The first time you run it, you may notice the process ‘hangs’ at docker step. This is because is downloading the docker image, which is quite sizeable (about 600Mb).

All we had to do is add IAM permissions to the bucket and define the lambda, adding a event to fire at object creations on the bucket. It is not needed to add the bucket to the resource creation section, as Serverless will already create the bucket as we defined that will be used by a lambda on the project.

Now, let’s test the bulk insert. After redeploying, let’s create a csv like following:

id,name,description,price
1,product 1,description 1,125.23
2,product 2,description 2,133.43
3,product 3,description 3,142.24

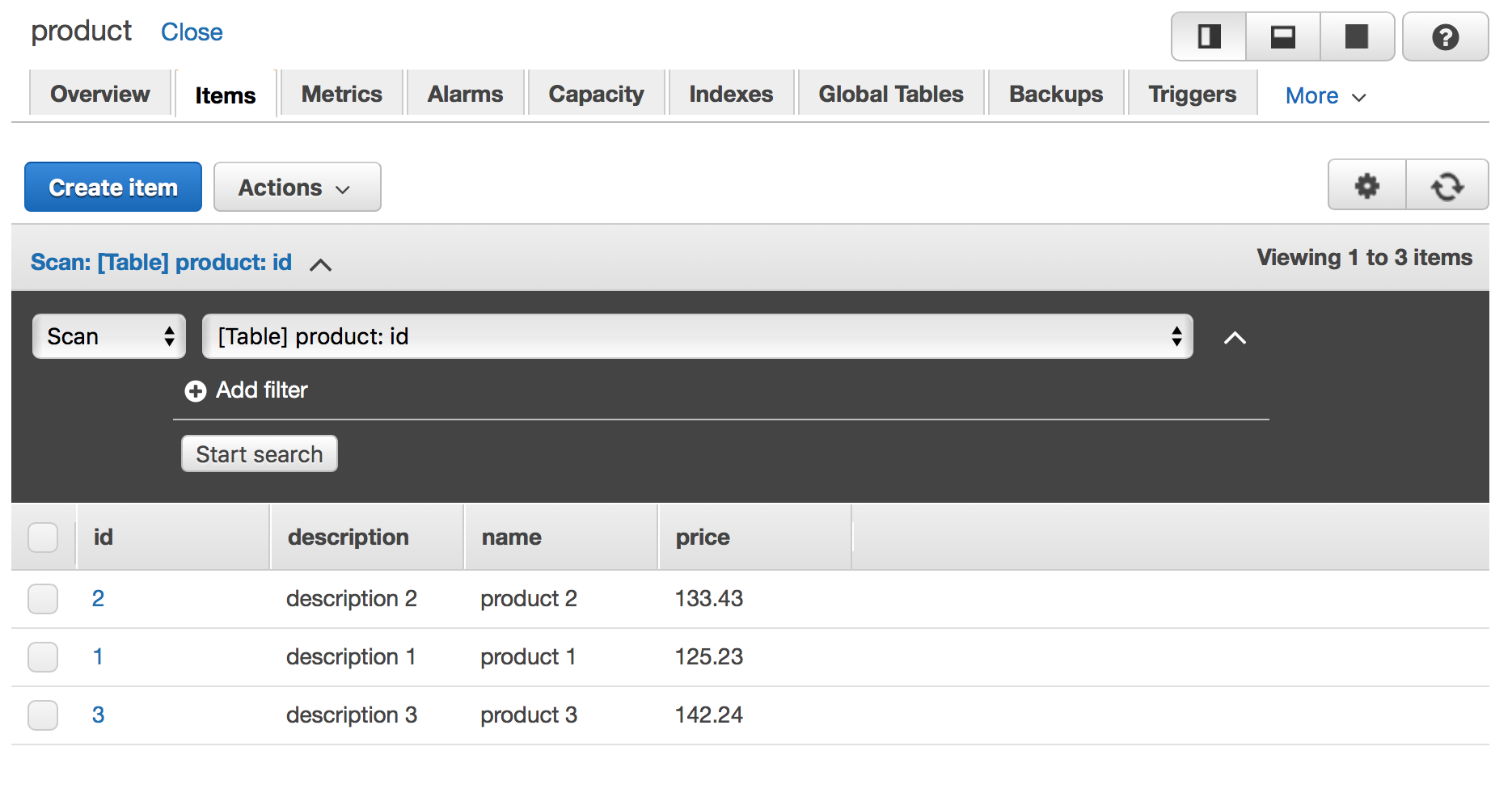

Let’s save the file and upload to our bucket. After some instants, we will see that our DynamoDB table will be populated with the data, as we can see bellow:

DynamoDB table populated with csv bulk data

Now that we have all our lambdas developed, let’s learn how to test locally and invoke our lambdas from different locations.

Testing local

Let’s test locally our insert product lambda. First, we need to create a json file to hold our test data. Let’s call it example_json.json :

{
  "body": {
    "id": "123",
    "name": "product 1",
    "description": "description 1",
    "price": "123.24"
  }
}

Next, let’s run locally by using Serverless, with the following command:

serverless invoke local --function save_product --path example_json.json

PS: Before running, don’t forget to set the AWS_PROFILE env variable to your profile.

After some instants, we will see the terminal outputting as follows:

Serverless: Invoke invoke:local
Saving result: ({'ResponseMetadata': {'RequestId': '0CDUDLGJEU7UBLLSCQ82SF0B53VV4KQNSO5AEMVJF66Q9ASUAAJG', 'HTTPStatusCode': 200, 'HTTPHeaders': {'server': 'Server', 'date': 'Mon, 14 May 2018 15:13:22 GMT', 'content-type': 'application/x-amz-json-1.0', 'content-length': '2', 'connection': 'keep-alive', 'x-amzn-requestid': '0CDUDLGJEU7UBLLSCQ82SF0B53VV4KQNSO5AEMVJF66Q9ASUAAJG', 'x-amz-crc32': '2745614147'}, 'RetryAttempts': 0}})

{
 "statusCode": 200,
 "body": "{\"message\": \"saved successfully\"}"
}

Behind the hood, Serverless is creating a emulated environment as close as it gets to AWS lambda environment, using the permissions described on the YAML to emulate the permissions set for the function.

It is important to notice that the framework doesn’t guarantee 100% accuracy with a real lambda environment, so more testing in a separate stage – QA, for example – is still necessary before going to production.

Testing on AWS API gateway

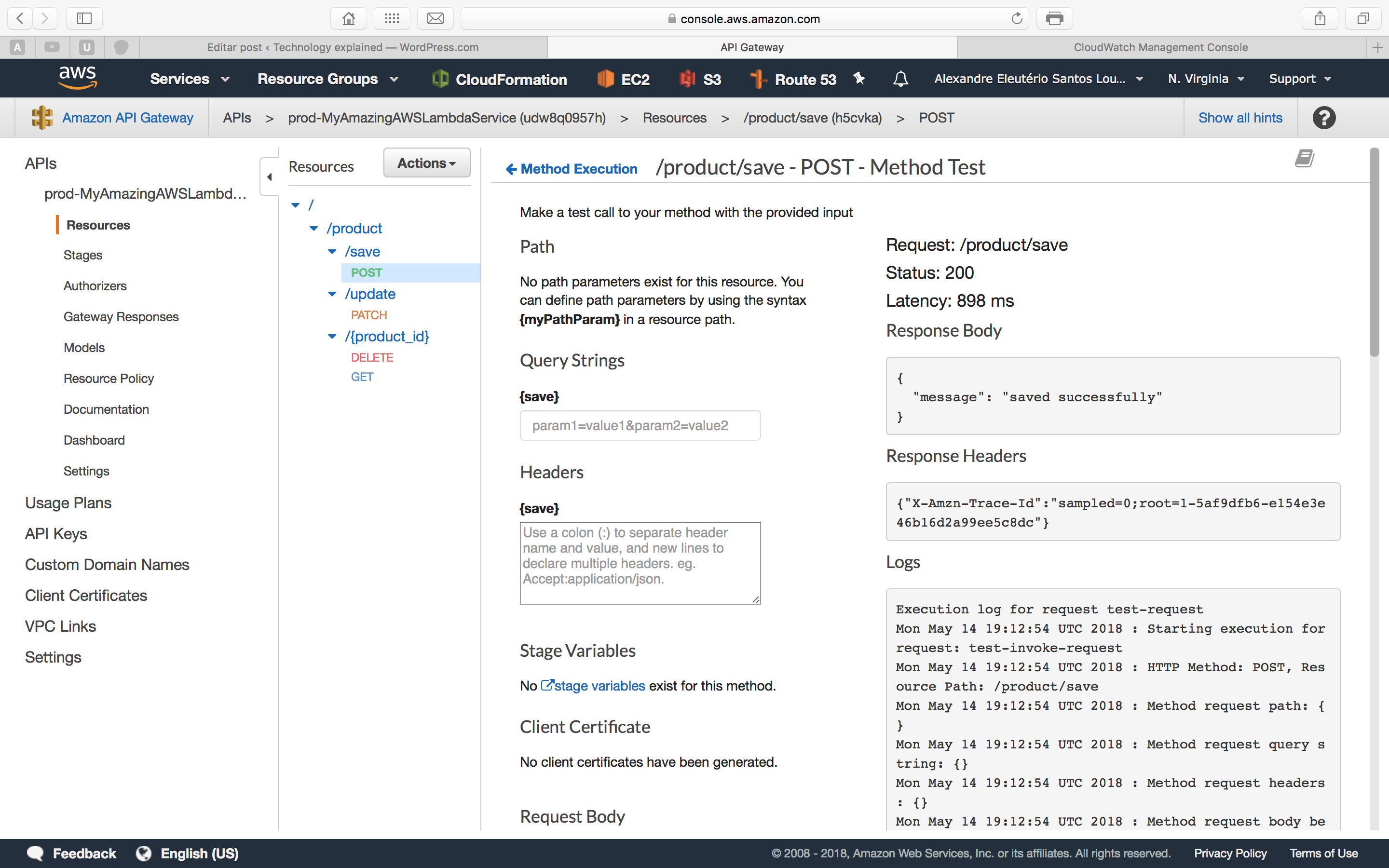

To test with AWS API gateway interface, is pretty simple: simply navigate to API Gateway inside Amazon console, then select prod-MyAmazingAWSLambdaService API, navigate to the POST endpoint for example, and select the TEST link.

Provide a JSON like the one we used on our local test – but without the body atribute, moving the attributes to the root – and run it. The API will run successfully, as we can see on the picture bellow:

AWS Lambda running on API Gateway

Testing as a consumer

Finally, let’s test like a consumer would call our API. For that, we will use curl. We open a terminal and run:

curl -d '{ "id": "123", "name": "product 1", "description": "description 1", "price": "123.24" }' -H "Content-Type: application/json" -X POST https://<your_rest_api_id>.execute-api.us-east-1.amazonaws.com/prod/product/save

This will produce the following output:

{"message": "saved successfully"}%

Proving our API is successfully deployed for consuming!

Adding security (API keys)

In our previous example, our API is exposed without security to the open world. Of course, on a real scenario, this is not good. It is possible to integrate lambda with several security solutions such as AWS Cognito, to improve security. In our lab, we will use basic API token authentication provided by AWS API gateway.

Let’s change our YAML as follows:

...omitted....
functions:
  bulk_insert:
    handler: bulk_handler.bulk_insert
    events:
      - s3:
          bucket: myamazingbuckets3
          event: s3:ObjectCreated:*
  save_product:
    handler: handler.save
    events:
      - http:
          path: product/save
          method: post
          private: true
  update_product:
    handler: handler.save
    events:
      - http:
          path: product/update
          method: patch
          private: true
  get_product:
    handler: handler.get
    events:
      - http:
          path: product/{product_id}
          method: get
          private: true
  delete_product:
    handler: handler.delete
    events:
      - http:
          path: product/{product_id}
          method: delete
          private: true
...omitted....

Now, after redeploying, if we try to make our previous curl, we will receive the following error:

{"message":"Forbidden"}%

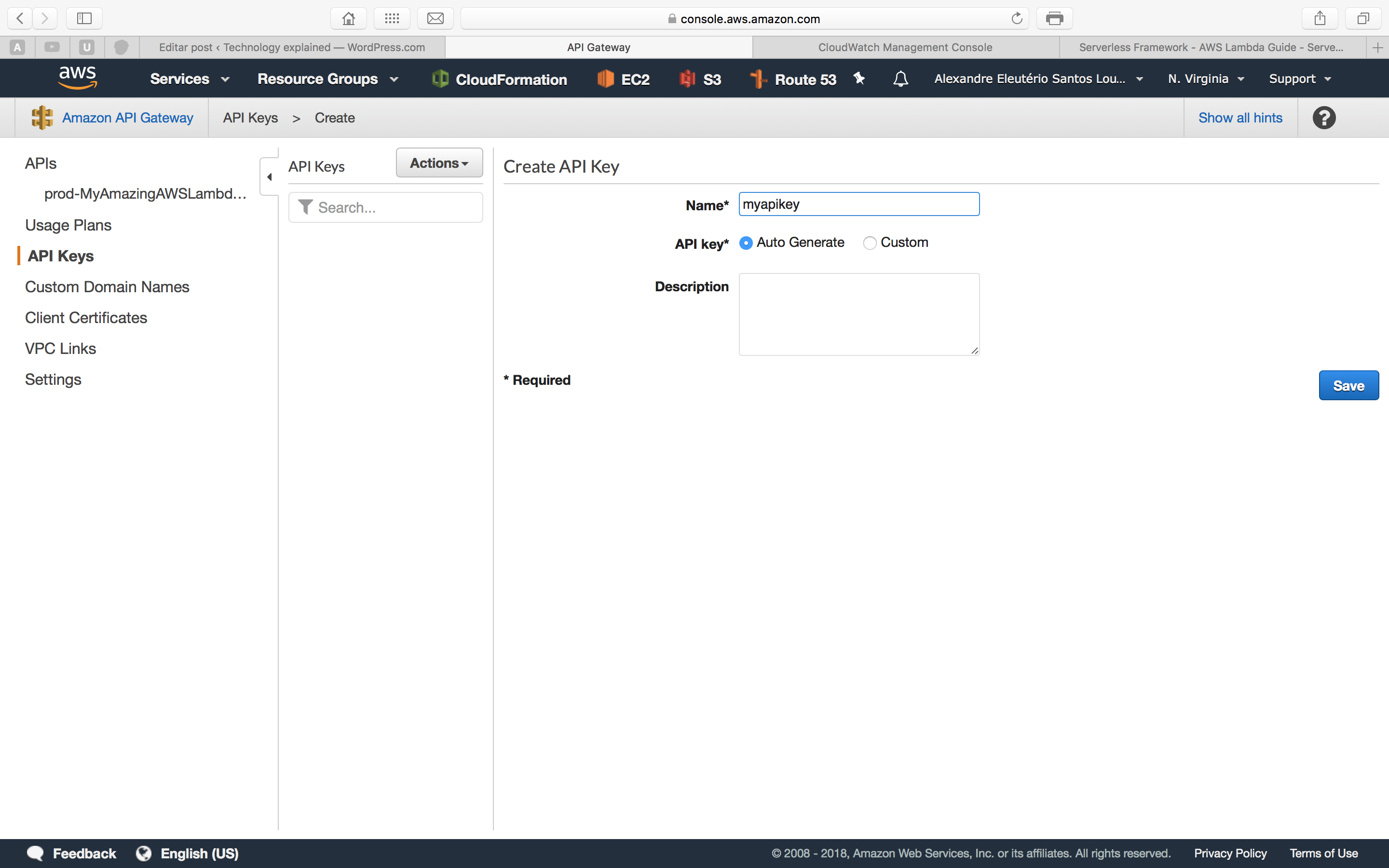

So, how do we call it now? First, we need to enter API Gateway and generate a API key, as bellow:

API gateway keys

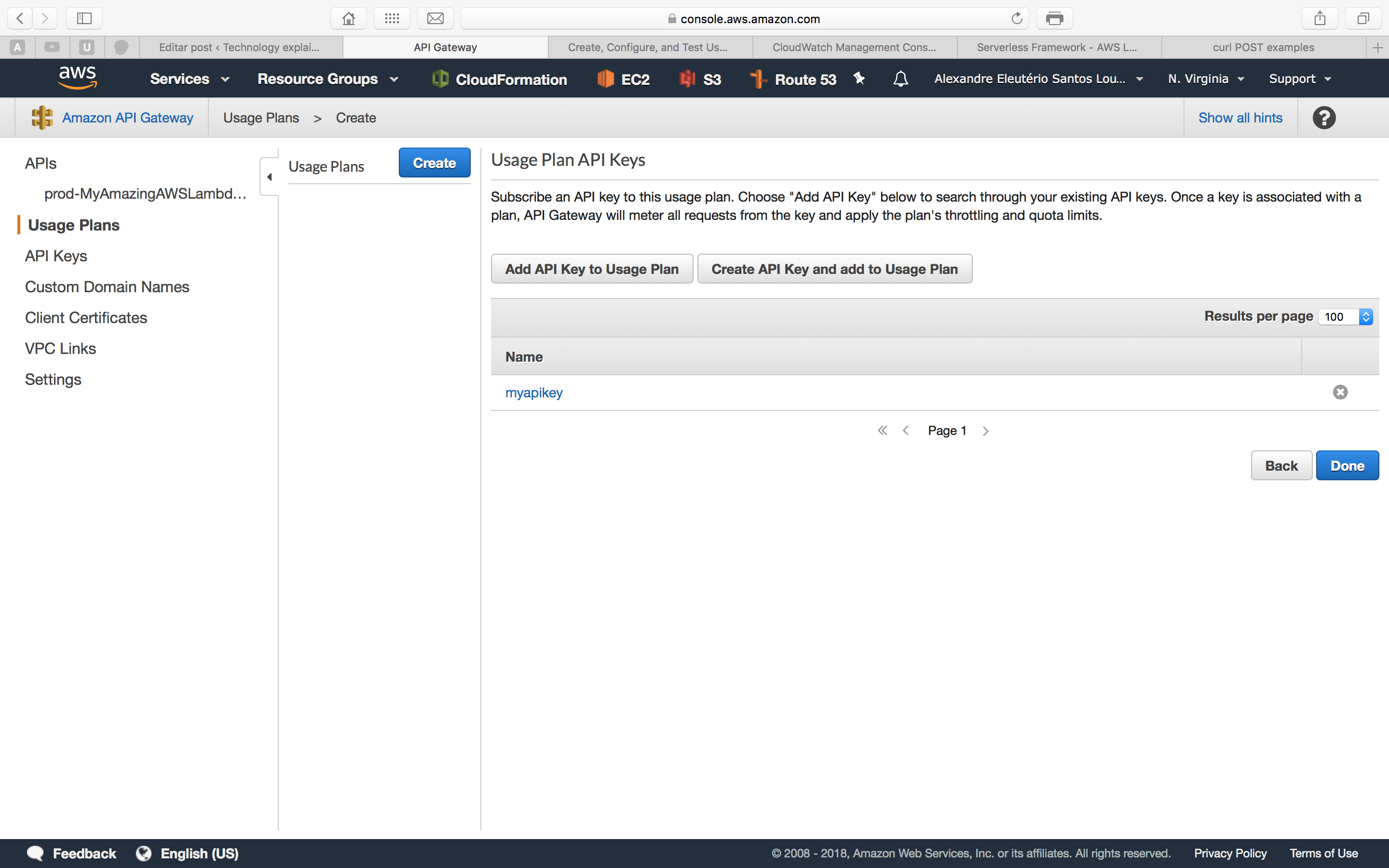

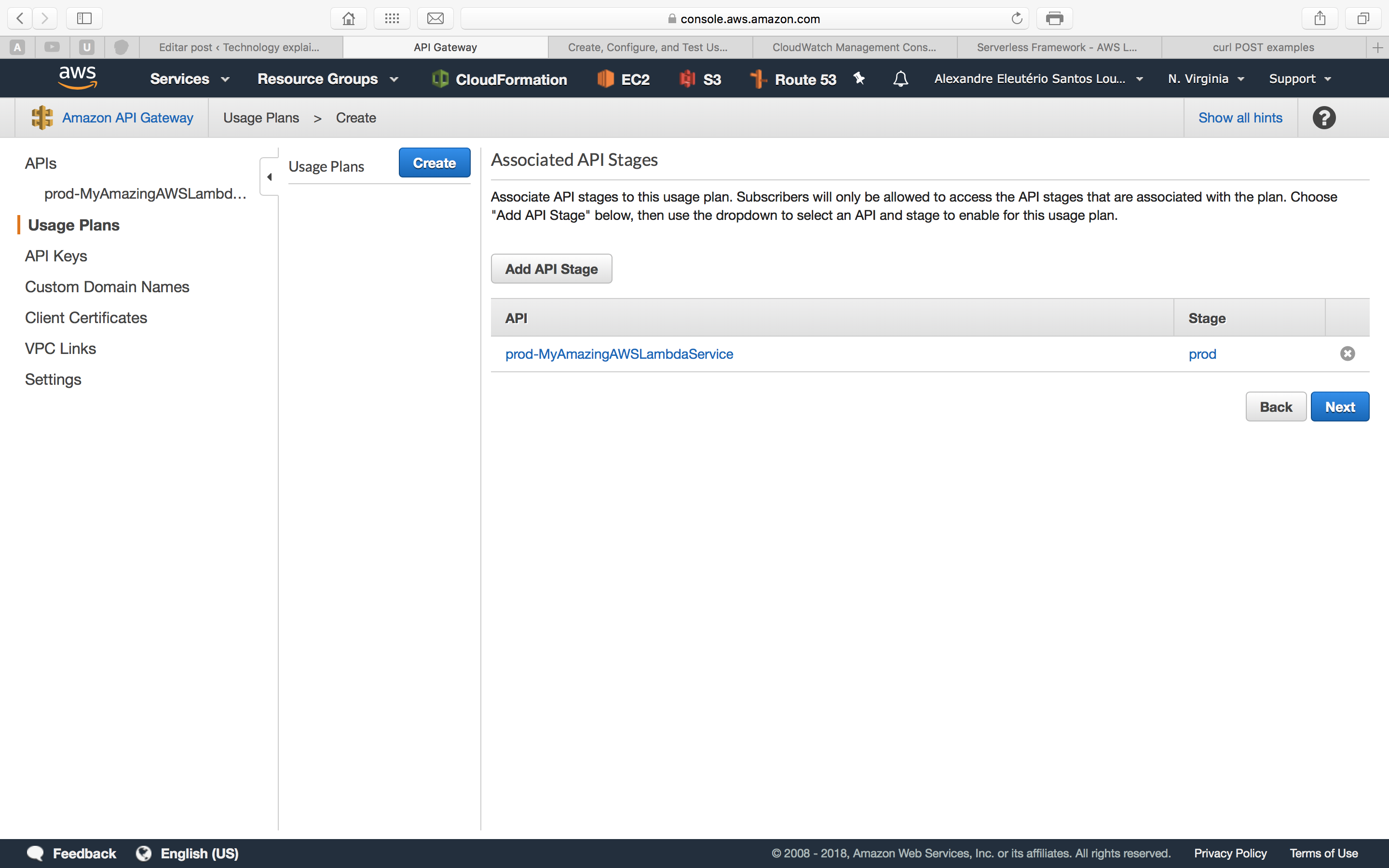

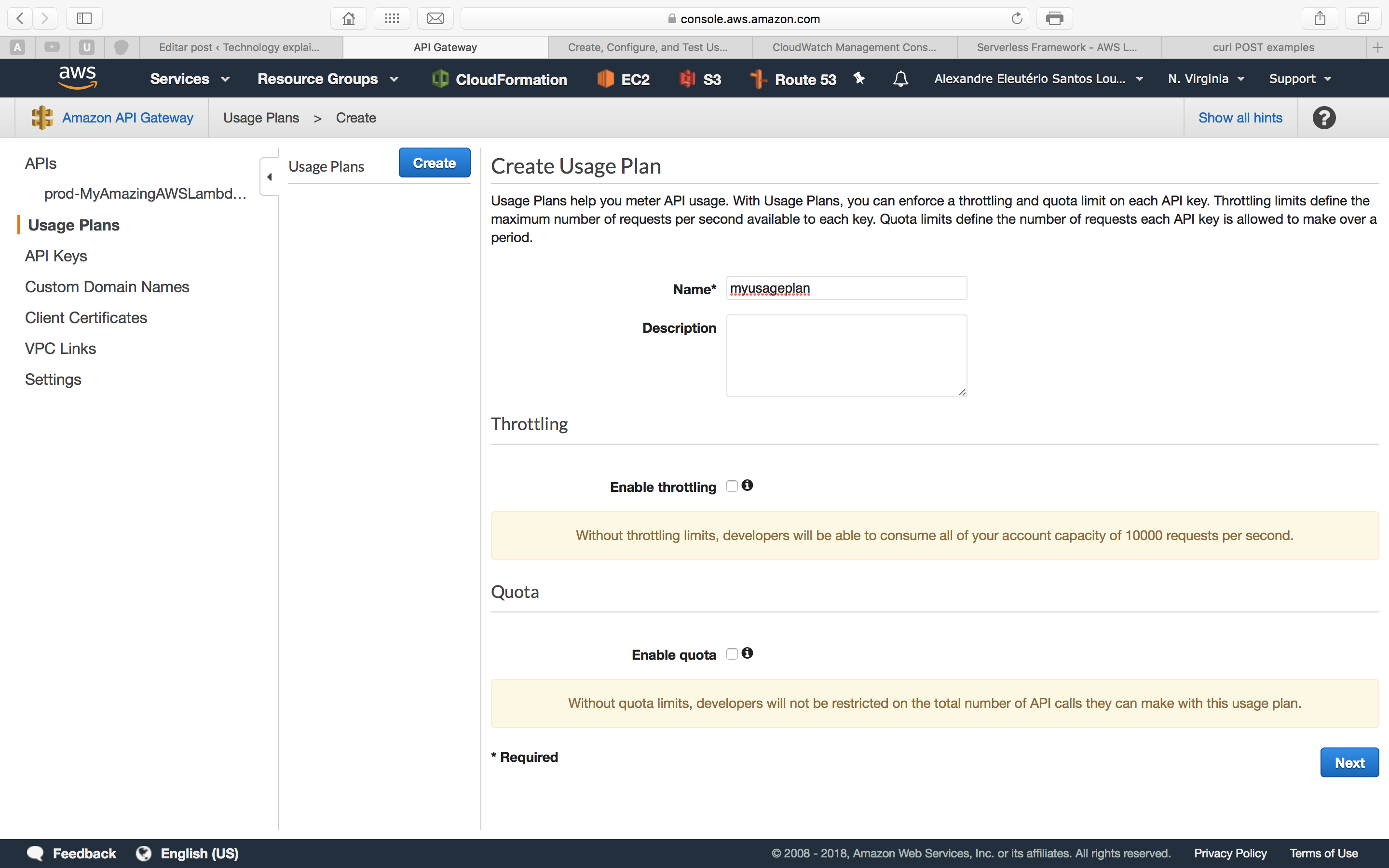

Secondly, we need to create a usage plan, to associate the key with our API. We do this by following the steps bellow inside API gateway interface:

With our key in hand, let’s try again our curl call, adding the header to pass our key:

curl -d '{ "id": "123", "name": "product 1", "description": "description 1", "price": "123.24" }' -H "Content-Type: application/json" -H "x-api-key: <your_API_key>" -X POST https://udw8q0957h.execute-api.us-east-1.amazonaws.com/prod/product/save

After the call, we will receive again the saved successfully response, proving our configuration was successful.

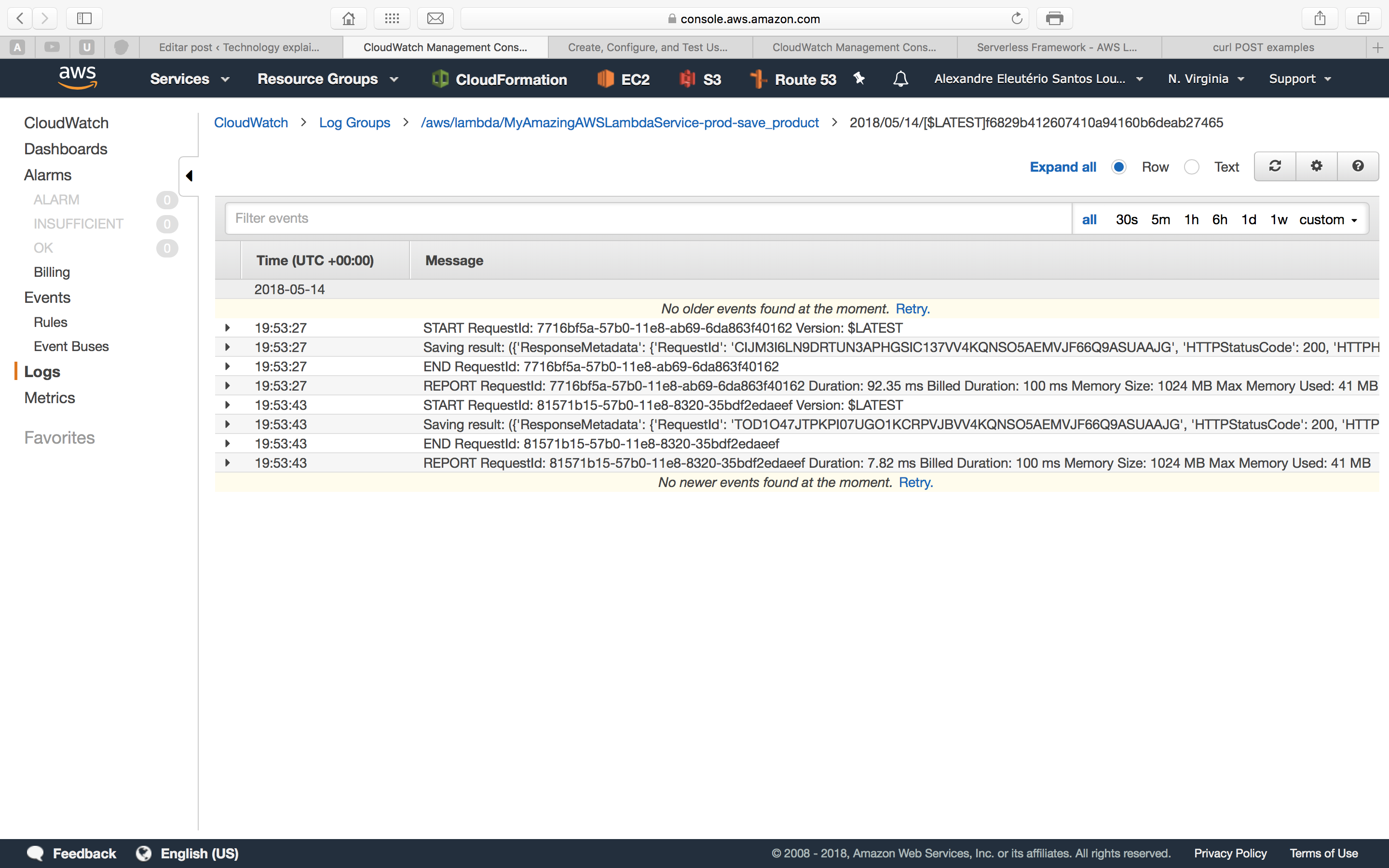

Lambda Logs (CloudWatch)

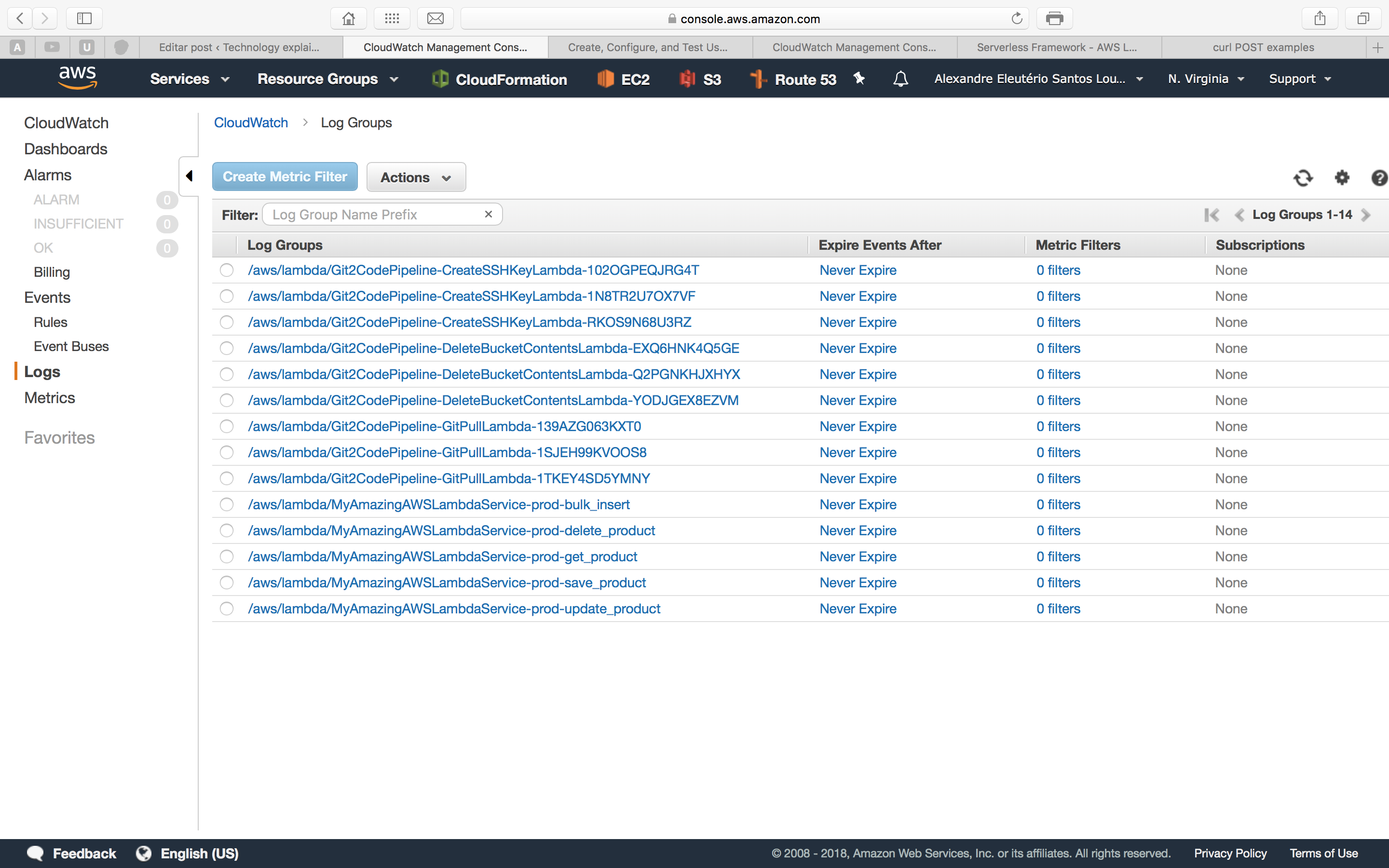

One last thing we will talk about is logging on AWS Lambda. The reader may noticed the use of Python’s print function in our code. On AWS Lambda, the prints done by Python are collected and organised inside another AWS service, called CloudWatch. We can access CloudWatch on the Amazon Console, as follows:

CloudWatch logs list

On the list above, we have each function separated as a link. If we drill down inside one of the links, we will see another link list of each execution made by that function. The print bellow is a example of one of our lambda’s executions:

Lambda execution log

Conclusion

And so we concluded our tour through AWS Lambda. With a simple and intuitive approach, it is a good option to deploy applications back-ends following the microservices paradigm. Thank you for following me on this post, until next time.

sources used on this lab

Backend for Frontends – a microservices pattern

Hello, dear readers! Welcome to my blog. On this post, we will talk about a pattern that it is emerging from the boiling microservices hype to issue some problems between backend and frontend integration: the BFF pattern (Backend for frontends).

Thoughtworks & Soundcloud

The BFF term was coined by Thoughtworks from their experience on a project for Soundcloud. On that project, the goal was to migrate a monolithic system made on rails, towards a microservices ecosystem. That legacy system was serving several different interfaces, such as IOS and Android applications, web applications and so forth. The following drawn extracted from the thoughtworks site – see links for the original – illustrates the AS-IS of the soundcloud ecosystem:

The problems began to arise as the microservice’s ecosystem grown up, since as the services keep coming, the complexities for the front-end teams, responsible for consuming the ecosystem, scaled up from issues coming from complex orchestration to overhead caused by extensive message payloads which in some cases the interface doesn’t need. This is a issue specially on mobile front-ends, since the overhead can lead to high memory consumption, undesirable on mobile environments.

That issues leaded not only to technical problems but also to communication problems as well, since the front-end teams needed to address the refinements to the back-end teams, which needed to be convinced about the changes. This problems made the ecosystem harder to evolve, since the issues started to incur on delays on the schedule, harsh communications between teams, etc.

So, what was the solution for the problems faced by the project? Let’s find out.

Solution

To solve the problems, the project team came with a concept they coined as BFF (Backend For Frontends). On this pattern, the interfaces – or front-ends – instead of consuming directly the microservices, consume a facade layer, responsible for implementing all the orchestration and transformation necessary in order to simplify the complexity and payload overloads to the front-end. Three key points are worth to note on the approach taken by the team:

The BFF layer is composed by several microservices which act as a facade for the different features of the system. As such, the components of this layer must be constructed with a feature-driven planning, meaning that they typically must be feature-grained;
Since the focus of the construction is to serve as a facade for the front-end, the BFFs are constructed by the front-end team, which is responsible for them;
The objective of a BFF is to serve as a facade to a specific feature for a specific interface. So, if a given feature is needed to be exposed to different interfaces such as a web interface and a mobile interface, then 2 different BFFs must be constructed to tackle the problem;

The drawn bellow shows the solution in practice:

The reader may notice that, on the drawn above, the BFFs are talking to a API on the monolith itself, instead of microservices. The reason for this is to demonstrate another benefit of the pattern: since the BFF layer abstracts the access between the front and the back-end, it eases the migration from a monolith architecture to a microservices architecture, by constructing the BFFs first. Not only that, but it is also possible to make “chains” of BFFs, where a BFF can reuse the logic already implemented by consuming another BFF, as we can see bellow:

Conclusion

And so we conclude our exploration of the BFF pattern. With a simple design, we can empower a microservices ecosystem, allowing the interfaces to make a better use of the architecture. Not only that, but it could also make a useful tool to facilitate a migration between the old monolith application and the new world of microservices. Thank you for following me on another post, until next time.

Docker: using containers to implement a Microservices architecture

Hello, dear readers! Welcome to another post from my blog. On this post, we will talk about the virtualization technology called Docker, which gained a ton of popularity this days, specially when we talk about Microservices architectures. But after all, what it is virtualization?

Virtualization

Virtualization, as the name implies, consists in the use of software to emulate any part of a environment, ranging from hardware components to a entire OS. In this world, there is several traditional technologies such as VMWare, Virtualbox, etc. This technologies, however, use hypervisors, which creates a intermediate layer responsible for isolating the virtual machine from the physical machine.

On containers, however, we don’t have this hypervisor layer. Instead, containers run directly on top of the kernel itself of the host machine they are running. This leads to a much more lightweight virtualization, allowing us to run a lot more VMs on a single host then we could do with a hypervisor.

Of course that using virtualization with hypervisors over containers has his benefits too, such as more flexibility – since you can’t for example run a windows container from a linux machine – and security, since this shared kernel approach leads to a scenario where if a attacker invades the kernel, he automatically get access to all the containers provided by that kernel, although we can say the same if the attacker invades the hypervisor of a machine running some VMs. This is a very heated debate, which we can find a lot of discussion by the Internet.

The fact is that containers are here to stay and his lightweight implementation provides a very good foundation for a lot of applications, such as a Microservices architecture. So, without further delay, let’s begin do dive in on Docker, one of the most popular container engines on the market today.

Docker Architecture

Docker was developed by Docker inc (formerly DotCloud inc) as a open-source engine for deployment of applications on containers. By providing a logical layer that manages the lifecycle of the containers, we can focus our development on the applications themselves, leaving the implementation of the container management to Docker.

The Docker architecture consists of a client-server model, where we have a Docker client, that could be the command line one provided by Docker, or a consumer of the RESTFul API also provided on the toolset, and the Docker server, also known as Docker daemon, which receives requests to create/start/stop containers, been responsible for the container management. The diagram bellow illustrates this architecture:

On the image above we can see the Docker clients connecting to the daemon, making requests to start/stop/create containers etc. We can also see that the daemon is communicating with a image repository and using images while processing the requests. What are those images for? That’s what we will find out on the next section.

Containers & Images

When we talk about containers on Docker, we talk about processes running from instructions that were set on images. We can understand images as the building blocks from which containers are build, that way organizing the building of containers on a Docker environment.

This images are distributed on repositories, also known as a docker registry, which in turn are versioned using git. The main repository for the distribution of Docker images is, of course, the Docker Hub, managed by Docker itself.

A interesting thing is that the code behind the Docker Hub is open, so it is perfectly possible to host your own image repository. To know more about this, please visit:

github.com/docker/distribution

Docker Union File System

If the reader is familiar with traditional virtualization with hypervisors, he could be thinking: “How Docker manages the file system so the images didn’t get ‘dirt’ from the files generated on the executions of all the created containers?”. This could be even worse when we think that images can be inherited from other images, making a whole image tree.

The answer for this is how Docker utilizes the file system, with a file system called Union File System. On this system, each image is layered as a read-only layer. The layers are then overlapped on top of each other and finally on top of the chain a read-write layer is created, for the use of the container. This way, none of the image’s file systems are altered, making the images clean for use across multiple containers.

Using Docker in other OS

Docker is designed for use on Linux distributions. However, for use as a development environment, Docker inc released a Docker Toolbox that allows it to run Docker both on OSX and Windows environments as well.

In order to do this, the toolbox install virtualbox inside his distribution, as well as a micro linux VM, that only has the minimum kernel packages necessary for the launch of containers. This way, when we launch the terminal of the toolbox, the launcher starts the VM on virtualbox, starting Docker inside the VM.

One important thing to notice is that, when we launch Docker this way, we can’t use localhost anymore when we want to access Docker from the same host it is running, since it is binded to a specific ip. We can see the ip Docker is bind to by the initialization messages, as we can see on the image bellow, from a Docker installation on OSX:

Another thing to notice is that, when we use docker on OSX or Windows, we don’t need to use sudo to execute the commands, while on Linux we will need to execute the commands as root. Another way to use Docker that removes the need to use sudo is by having a group called ‘docker’ on the machine, which will make docker apply the permissions necessary to run docker without sudo to the group. Notice, however, that users from this group will have root permissions, so caution is required.

Docker commands

Well, now that we get the concepts out of the way, let’s start using Docker!

As said before, Docker uses image repositories to resolve the images it needs to run the containers. Let’s begin by running a simple container, to make a famous ‘hello world!’, Docker style.

To do this, let’s open a terminal – or the Docker QuickStart Terminal on other OS – and type:

docker run ubuntu echo 'hello, Docker!'

This is the run command, which creates a new container each time is called. On the command above, we simply asked Docker to create a new container, using the image ubuntu – if it doesn’t have already, Docker will search Docker Hub for the latest version of the image and download it. If we wanted to use a specific version, we could specify like this: ‘ubuntu:14.04’ – from Docker Hub. At the end, we specify a command for the container to run, on this case, a simple “echo ‘hello world!’ “.

The image bellow show the command in action, downloading the image and executing:

To list the containers created, we run the command ‘docker ps’. If we run the command this way now, however, we won’t see anything, because the command by default only shows the active containers and on our case, our container simply stopped after running the command. If we run the command with the flag -a, we can then see the stopped containers, like the image bellow:

However, there’s a problem: our hello world container was just a test, so we didn’t want to keep with the container. Let’s correct this by removing the container, with the command:

docker rm 2f134296daa6

PS: The hash you can see on the command is part of the ID of the container, that you can see when you list the containers with docker ps.

Now, what about if we wanted to run again our hello world container, or any other container that we need just once, without the need to manually remove the container afterwards? We can do this using the –rm flag, running like this:

docker run --rm ubuntu echo 'hello, Docker!'

If we run docker ps -a again, after running the command above, we can see that there’s no containers from our previous execution, proving that the flag worked correctly.

Let’s now do a little more complex example, starting a container with a Tomcat server. First, let’s search for the name of the image we want on Docker Hub. To do this, open a browser and type it:

https://hub.docker.com

Once inside the Docker Hub, let’s search for the image typing ‘tomcat’ on the search box on the top right corner of the site. We will be send to a screen like the one bellow. You can see the images with some classifiers like ‘official’ and ‘automated’.

Official means that the image is maintained by Docker itself, while automated means that the image is maintained by a CI workload.On the section ‘Publishing on Docker Hub’ we will understand more about the options to publish our own images to the Docker Hub.

From the Docker Hub we get that the name of the official image is ‘tomcat’, so let’s use this image. To use it, we simply run the following command, which will start a new container with the tomcat image:

docker run --name mytomcat -p 8888:8080 tomcat:8.0

You can see that we used some new flags on this command. First, we used the flag –name, which makes a name for our container, so we can refer to this name when running commands afterwards.

The -p flag is used to bind a port from the host machine to a port on the container. On the next sections, we will talk about creating our own images and we will see that we can expose ports from the container to be accessed by clients, like in this case that we exposed the port tomcat will serve on the container (8080) to the port 8888 of the host.

Lastly, when declaring the image we will use, we specified the version, 8.0, meaning that we want to use Tomcat 8.0. Note that we didn’t passed any command to the container, since the image is already configured to start the Tomcat server after the building. After running the command, we can see that tomcat is running inside our container:

The problem is that now our terminal is occupied by the tomcat process so we can’t issue more commands. Let’s press Crtl+C and type the docker ps command. The container is not active! the reason for this is that, by default, Docker don’t put the containers to run in background when we create a new container. To do this, we use the -d flag, so on the previous command, all we had to do is include this flag to make the container start on background.

Let’s start the container again with the command docker start:

docker start mytomcat

After the start, we can see that the container is running, if we run docker ps:

Before we open the server on the browser, let’s just check if the container is exposed on the port we defined. To do this, we use the command:

docker port mytomcat

This command will return the following result:

8080/tcp -> 0.0.0.0:8888

Which means that the container is exposed on the port 8888, as defined. If we open the browser on localhost:8888 – or the ip binded by Docker on a non-linux environment – we will receive the following screen:

Excellent! Now we have our own dockerized Tomcat! However, by starting the container in background, we couldn’t see the logging of the server, to see if there wasn’t any problem on the startup of the web server. let’s see the last lines of the log of our container by entering the command:

docker logs mytomcat

This will show the last inputs of our container on the stdout. We could also use the command:

docker attach mytomcat

This command has the same effect of the tail command on a file, making it possible to watch the logs of the container. Take notice that after attaching to a container, pressing Ctrl+C will kill him!

Before ending our container, let’s see more detailed information about our container, such as the Java version, network mappings etc. To do this, we run the following command:

docker inspect mytomcat

This will produce a result like the following, in JSON format:

[

{

“Id”: “14598a44a3b4fe2a5b987ea365b2c83a0399f4fda476ad1754acee23c96fcc22”,

“Created”: “2016-01-03T17:59:49.632050403Z”,

“Path”: “catalina.sh”,

“Args”: [

“run”

],

“State”: {

“Status”: “running”,

“Running”: true,

“Paused”: false,

“Restarting”: false,

“OOMKilled”: false,

“Dead”: false,

“Pid”: 4811,

“ExitCode”: 0,

“Error”: “”,

“StartedAt”: “2016-01-03T17:59:49.728287604Z”,

“FinishedAt”: “0001-01-01T00:00:00Z”

},

“Image”: “af28fa31b54b2e45d53e80c5a7cbfd2693f198fdb8ba53d44d8a432832ad1012”,

“ResolvConfPath”: “/mnt/sda1/var/lib/docker/containers/14598a44a3b4fe2a5b987ea365b2c83a0399f4fda476ad1754acee23c96fcc22/resolv.conf”,

“HostnamePath”: “/mnt/sda1/var/lib/docker/containers/14598a44a3b4fe2a5b987ea365b2c83a0399f4fda476ad1754acee23c96fcc22/hostname”,

“HostsPath”: “/mnt/sda1/var/lib/docker/containers/14598a44a3b4fe2a5b987ea365b2c83a0399f4fda476ad1754acee23c96fcc22/hosts”,

“LogPath”: “/mnt/sda1/var/lib/docker/containers/14598a44a3b4fe2a5b987ea365b2c83a0399f4fda476ad1754acee23c96fcc22/14598a44a3b4fe2a5b987ea365b2c83a0399f4fda476ad1754acee23c96fcc22-json.log”,

“Name”: “/mytomcat”,

“RestartCount”: 0,

“Driver”: “aufs”,

“ExecDriver”: “native-0.2”,

“MountLabel”: “”,

“ProcessLabel”: “”,

“AppArmorProfile”: “”,

“ExecIDs”: null,

“HostConfig”: {

“Binds”: null,

“ContainerIDFile”: “”,

“LxcConf”: [],

“Memory”: 0,

“MemoryReservation”: 0,

“MemorySwap”: 0,

“KernelMemory”: 0,

“CpuShares”: 0,

“CpuPeriod”: 0,

“CpusetCpus”: “”,

“CpusetMems”: “”,

“CpuQuota”: 0,

“BlkioWeight”: 0,

“OomKillDisable”: false,

“MemorySwappiness”: -1,

“Privileged”: false,

“PortBindings”: {

“8080/tcp”: [

{

“HostIp”: “”,

“HostPort”: “8888”

}

]

},

“Links”: null,

“PublishAllPorts”: false,

“Dns”: [],

“DnsOptions”: [],

“DnsSearch”: [],

“ExtraHosts”: null,

“VolumesFrom”: null,

“Devices”: [],

“NetworkMode”: “default”,

“IpcMode”: “”,

“PidMode”: “”,

“UTSMode”: “”,

“CapAdd”: null,

“CapDrop”: null,

“GroupAdd”: null,

“RestartPolicy”: {

“Name”: “no”,

“MaximumRetryCount”: 0

},

“SecurityOpt”: null,

“ReadonlyRootfs”: false,

“Ulimits”: null,

“LogConfig”: {

“Type”: “json-file”,

“Config”: {}

},

“CgroupParent”: “”,

“ConsoleSize”: [

0,

0

],

“VolumeDriver”: “”

},

“GraphDriver”: {

“Name”: “aufs”,

“Data”: null

},

“Mounts”: [],

“Config”: {

“Hostname”: “14598a44a3b4”,

“Domainname”: “”,

“User”: “”,

“AttachStdin”: false,

“AttachStdout”: false,

“AttachStderr”: false,

“ExposedPorts”: {

“8080/tcp”: {}

},

“Tty”: false,

“OpenStdin”: false,

“StdinOnce”: false,

“Env”: [

“PATH=/usr/local/tomcat/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin”,

“LANG=C.UTF-8”,

“JAVA_VERSION=7u91”,

“JAVA_DEBIAN_VERSION=7u91-2.6.3-1~deb8u1”,

“CATALINA_HOME=/usr/local/tomcat”,

“TOMCAT_MAJOR=8”,

“TOMCAT_VERSION=8.0.30”,

“TOMCAT_TGZ_URL=https://www.apache.org/dist/tomcat/tomcat-8/v8.0.30/bin/apache-tomcat-8.0.30.tar.gz”

],

“Cmd”: [

“catalina.sh”,

“run”

],

“Image”: “tomcat:8.0”,

“Volumes”: null,

“WorkingDir”: “/usr/local/tomcat”,

“Entrypoint”: null,

“OnBuild”: null,

“Labels”: {},

“StopSignal”: “SIGTERM”

},

“NetworkSettings”: {

“Bridge”: “”,

“SandboxID”: “37fe977f6a45f4495eae95260a67f0e99a8168c73930151926ad521d211b4ac6”,

“HairpinMode”: false,

“LinkLocalIPv6Address”: “”,

“LinkLocalIPv6PrefixLen”: 0,

“Ports”: {

“8080/tcp”: [

{

“HostIp”: “0.0.0.0”,

“HostPort”: “8888”

}

]

},

“SandboxKey”: “/var/run/docker/netns/37fe977f6a45”,

“SecondaryIPAddresses”: null,

“SecondaryIPv6Addresses”: null,

“EndpointID”: “09477abf22e8019e2f8d3e0deeb18d9362136954a09e336f4a93286cb3b8b027”,

“Gateway”: “172.17.0.2”,

“GlobalIPv6Address”: “”,

“GlobalIPv6PrefixLen”: 0,

“IPAddress”: “172.17.0.3”,

“IPPrefixLen”: 16,

“IPv6Gateway”: “”,

“MacAddress”: “02:42:ac:11:00:03”,

“Networks”: {

“bridge”: {

“EndpointID”: “09477abf22e8019e2f8d3e0deeb18d9362136954a09e336f4a93286cb3b8b027”,

“Gateway”: “172.17.0.2”,

“IPAddress”: “172.17.0.3”,

“IPPrefixLen”: 16,

“IPv6Gateway”: “”,

“GlobalIPv6Address”: “”,

“GlobalIPv6PrefixLen”: 0,

“MacAddress”: “02:42:ac:11:00:03”

}

}

}

}

]

Now, let’s stop our container, by entering:

docker stop mytomcat

Finally, let’s remove the container, since we won’t use him anymore on this practice:

docker rm mytomcat

Let’s also remove the image, since we won’t use it either on our next steps:

docker rmi tomcat:8.0

And that concludes our breaking course on Docker’s commands! There are also other useful commands as well, of course, such as:

docker build: Used to build a image from a Dockerfile (see next sections);
docker commit: Creates a image from a container;
docker push: Pushes the image for a registry (Docker Hub by default);
docker exec: Submit a command for a running container;
docker export: Export the file system of a container as a tar file;
docker images: list the images inside Docker;
docker kill: force kill a running container;
docker restart: restart a container;
docker network: manages docker networks (see next sections);
docker volume: manages docker volumes (see next sections);

Creating your own images

On the previous section, we used a image from the Docker Hub, that creates a container with a Tomcat Web Server. This image is implemented by a script with building instructions called Dockerfile. On our lab we will create a Dockerfile, but for now, let’s just examine the Dockerfile from the tomcat’s image in order to learn some of the instructions available:

FROM java:7-jre
ENV CATALINA_HOME /usr/local/tomcat

ENV PATH $CATALINA_HOME/bin:$PATH

RUN mkdir -p “$CATALINA_HOME”

WORKDIR $CATALINA_HOME
# see https://www.apache.org/dist/tomcat/tomcat-8/KEYS

RUN gpg –keyserver pool.sks-keyservers.net –recv-keys \

05AB33110949707C93A279E3D3EFE6B686867BA6 \

07E48665A34DCAFAE522E5E6266191C37C037D42 \

47309207D818FFD8DCD3F83F1931D684307A10A5 \

541FBE7D8F78B25E055DDEE13C370389288584E7 \

61B832AC2F1C5A90F0F9B00A1C506407564C17A3 \

79F7026C690BAA50B92CD8B66A3AD3F4F22C4FED \

9BA44C2621385CB966EBA586F72C284D731FABEE \

A27677289986DB50844682F8ACB77FC2E86E29AC \

A9C5DF4D22E99998D9875A5110C01C5A2F6059E7 \

DCFD35E0BF8CA7344752DE8B6FB21E8933C60243 \

F3A04C595DB5B6A5F1ECA43E3B7BBB100D811BBE \

F7DA48BB64BCB84ECBA7EE6935CD23C10D498E23
ENV TOMCAT_MAJOR 8

ENV TOMCAT_VERSION 8.0.30

ENV TOMCAT_TGZ_URL https://www.apache.org/dist/tomcat/tomcat-$TOMCAT_MAJOR/v$TOMCAT_VERSION/bin/apache-tomcat-$TOMCAT_VERSION.tar.gz
RUN set -x \

&& curl -fSL “$TOMCAT_TGZ_URL” -o tomcat.tar.gz \

&& curl -fSL “$TOMCAT_TGZ_URL.asc” -o tomcat.tar.gz.asc \

&& gpg –verify tomcat.tar.gz.asc \

&& tar -xvf tomcat.tar.gz –strip-components=1 \

&& rm bin/*.bat \

&& rm tomcat.tar.gz*
EXPOSE 8080

CMD [“catalina.sh”, “run”]

As we can see, the first instruction is called FROM. This instruction delimits the base image upon the image will be constructed. On this case, the java:7-jre image will create a basic Linux environment, with Java 7 configured.

Then we see some ENV instructions. This commands set environment variables on the OS, as part of Tomcat’s configuration. We can also see a WORKDIR instruction, which defines the directory that, from that point, Docker will use to run the commands.

We also see some RUN instructions. This instructions, as the name implies, run commands on the container.On the case of our image, this instructions make tomcat’s installation process.

Finally we see the EXPOSE instruction, which exposes the 8080 port for the host. Finally, we see the CMD instruction, which defines the start of the server. One important distinction of the CMD command from the RUN ones is that, while the RUN instructions only executes on the build phase, the CMD instruction is executed on the container’s startup, making it the command to be executed on the creation and start of a container. For this reason, it is only allowed to have one CMD command per Dockerfile.

One important side note about the CMD command is that, when starting a container, it allows to override the command on the Dockerfile, so it could lead to security holes when used. For this reason, it is recommended to use the ENTRYPOINT instruction instead, that like the CMD instruction, it defines the command the container will run at startup, but on this case, it will not permit the command to be overridden, making it more secure.

We could also use ENTRYPOINT and CMD combined, making it possible to restrict the user to only pass flags and/or arguments to the running command.

Of course, that is not the only instructions we can use on a Dockerfile. Other instructions are:

MAINTAINER: Defines the author of the image;
LABEL: Adds metadata to a image, in a key=value format;
ADD: Adds a file, folder or remote file URL to a folder inside the container. The current directory from which this instruction point it out is the same directory of the Dockerfile;
COPY: Analogous to ADD, this instruction also copies files and folders from the host to the container. The two major differences are that COPY doesn’t allow the use of URLs and COPY doesn’t uncompress known files, like ADD can;
VOLUME: Creates a volume. On the section “creating the base image” we will learn in more detail about what are volumes on Docker;
USER: Defines the name of the user used to run the RUN, CMD and ENTRYPOINT instructions;
ARG: Defines build-time variables, that could be used to pass parameters for the image’s buildings, using the —build-arg flag;
ONBUILD: Defines a command to be triggered by other images, when the image is used as a base image for other images;
STOPSIGNAL: Defines the code for the container to stop, as a number or in the SIGNAME format, for instance SIGKILL.

Publishing on Docker Hub

As we saw on the previous section, in order to create our own images, all we have to do is create a “Dockerfile” file, with the instructions necessary for the building. However, in order to distribute our images, we need to register them on a image registry, like the Docker Hub, for example.

The simplest way to publish images are with the commit and push commands. For example, if we had made changes to our Tomcat container and wanted to save those changes as a new image, we could do this with this command:

docker commit mytomcat alexandreesl/mytomcat

Where the second argument is the <repository ID>/<image name>. In order to push the images to Docker Hub, the repository ID must be equals to the username of our Docker Hub account.

After committing the changes, all we have to do is push the changes to the Hub, using the following command:

docker push alexandreesl/mytomcat

And that’s it! After the push, if we see our Docker Hub account, we can see that our image was successfully created:

NOTE: before pushing, you could have to run the command docker login to register your credentials from the Docker Hub

Another way of publishing is by linking our images with a git repository, this way the Docker Hub will rebuild the image each time a new version of the Dockerfile is pushed to the repository. Is this method of publishing that generates automated build images, since this way Docker can establish a CI Workload with the git repository. We will see this method in action on the next section, ‘Creating the base image’.

Practice: Using Docker to implement a microservices architecture

On our lab, we will take a step forward from my previous post about microservices with Spring Boot (haven’t see it? you can find it here, I am really grateful if you read that post as well!), by using a Service Registry called Eureka, designed by Netflix.

On the Service Registry pattern, we have a registry where microservices can register/unregister and also find the addresses of a service dynamically, this way decoupling the bounds between them. We will dockerize (run inside a container) the services of that lab and make them use Eureka, which will also run inside a container. In order to integrate with Eureka, we will modify our applications to use the Spring Cloud project, which according to the project’s description:

Spring Cloud provides tools for developers to quickly build some of the common patterns in distributed systems (e.g. configuration management, service discovery, circuit breakers, intelligent routing, micro-proxy, control bus, one-time tokens, global locks, leadership election, distributed sessions, cluster state). Coordination of distributed systems leads to boiler plate patterns, and using Spring Cloud developers can quickly stand up services and applications that implement those patterns. They will work well in any distributed environment, including the developer’s own laptop, bare metal data centres, and managed platforms such as Cloud Foundry.

Also, to “Springfy” even more our example, we will exchange our implementation from the previous post that uses pure jax-rs to the RestController implementation, present on the Spring Web project.

Creating the base image

Well, so let’s begin our practice! First, we will create a Docker Network to accommodate the containers.

If we see the network adapters from the host machine when the Docker Daemon is up, we will see that he creates a bridge adapter on the host, subsequently appending the containers on network interfaces inside the bridge adapter. This forms a subnet where the containers can see each other and also Docker facilitates the work for us, by mapping the container’s IPs with their names, on the /etc/hosts files inside.

On our scenario, we will use this feature so the microservices can easily find our Eureka registry, by mapping the address to the container’s name. Of course that on a real scenario we would have a cluster of Eurekas with a load balancer on separate hosts, but for simplicity’s sake of our lab, we will just use one Eureka instance.

So, in order to create a network to accommodate our architecture, first we create a network, by running the following command:

docker network create microservicesnet

After running the command we will see a hash’s ID indicating our network was created. We can see the details of our network by running the following command:

docker network inspect microservicesnet

Which will produce a result like the following:

[

{

“Name”: “microservicesnet”,

“Id”: “e8d401a00de26b74f4f2461c13dbf848c14f37127b3337a3e40465eff5897910”,

“Scope”: “local”,

“Driver”: “bridge”,

“IPAM”: {

“Driver”: “default”,

“Config”: [

{}

]

},

“Containers”: {},

“Options”: {}

}

]

Notice that, for now, the containers object is empty. This is why we didn’t add any containers to the network yet, but this will soon change.

Now we will create the Dockerfile. Create a folder in the directory of your choice and create a file called ‘Dockerfile’ (without any extension). On my case, I will push my Dockerfile to a Github repository, in order to create the image on Docker Hub as a automated build image. You can find the repositories with the source for this lab at the end of the post.

So, without further delay, let’s code the Dockerfile. The code for our image will be the following:

FROM java:8-jre

MAINTAINER Alexandre Lourenco <alexandreesl@example.com>

VOLUME [ "/data" ]

WORKDIR /data

EXPOSE 8080
ENTRYPOINT [ "java" ]
CMD ["-?"]

As we can see, it is a simple Dockerfile. We use Java’s 8 official image as the base, define a volume and set his folder as our Workdir, expose the 8080 port which is the default for Spring Boot and finally we combine the entrypoint and cmd commands, meaning that anything we pass when we get up a container will be treated as parameters for the Java command. But what is this volume we have speaked of?

The reader must remember what we saw about the Union File System and how each image is layered as a read-only layer. The volumes on Docker is a technique that bypasses the Union File System, by defining a mount point on the Containers that points for a shared space on the host machine. The uses of this technique are in order to provide a place where the container can read/write information that needs to be persisted, alongside the need to share data between containers.

On our scenario, we will use the volume to point to a place where the jars of our microservices will be generated, so when a container runs a microservice, it runs the last version of the software. On a real-world scenario, this place could be a result of a CI workload, for example from a Jenkins job.

Now that we have our image, let’s build the image to test his correctness:

docker build -t alexandreesl/microservices-spring-boot-base .

At the end, we will see a message that our building was successful, validating the Dockerfile. Out of curiosity, if you see the building process, you will notice that Docker created several temporary containers for each instruction of our script, maintaining a status of the last successful instruction executed, so if we have to rebuild the image after a failure, we can restart from the failed point. We can disable this feature with the flag -no-cache if we want.

Now, let’s register the image on Docker Hub. I have created a Github repository here, so I will register the image directly on the site. To do this, we log in on our account and click on the “create automated build” menu item, as shown on the screen bellow:

After clicking, if we haven’t linked a github account yet, we will be prompted to do so. after making the linking, we will see a page with the list of our git repositories. We select the one with the Dockerfile and finally create the image, entering the name and a description for the image, as the screen bellow:

After clicking on the create button, we have completed our step, successfully registering our image on the Docker Hub! You can see my image on this link.

Lastly, just to test if our Docker Hub upload was really successful, we will remove the image from the local cache – that we added with our docker build command – and download using the docker pull command. First, let’s remove the image with the command:

docker rmi alexandreesl/microservices-spring-boot-base

And after, let’s pull the image with the command:

docker pull alexandreesl/microservices-spring-boot-base

After the download, we will have the image from the Docker Hub repository.

Preparing the service registry image

For the service registry image, we actually don’t have to do any coding, since we will use a already made image. We will start the image on the “Launching the containers” section, but the reader can see the image’s page to satisfy his curiosity here.

Preparing the services to use the registry

Now, Let’s prepare the services for the registering/deregistering of microservices, alongside service discovery when a service has dependencies.

To focus on the explanation, I will omit some details like the pom configuration, since the reader can easily get the configuration on the Github repository from the lab. On this lab, we have 3 microservices: a Customer service, a Product service and a Order service. The Order service has dependencies on the other 2 services, in order to mount a Order.

On the 3 projects we will have the same configuration for Spring Boot’s main class, called Application, as follows:

@SpringBootApplication
@Configuration
@EnableAutoConfiguration
@EnableEurekaClient
public class Application {

public static void main(String[] args) {
 SpringApplication.run(Application.class, args);
 }
}

The key line here is the annotation @EnableEurekaClient, which configures the Spring Boot’s application to work with Eureka. Just with these annotation alone, we configure Spring Boot to connect to Eureka at startup and register itself with, send heartbeats during his lifecycle to keep the registration alive and finally make a unregistration when the process is terminated. Also, it instantiate a RestTemplate with a Ribbon load balancer, also made by Netflix, that can easily lookup service addresses from the registry. All of this with just one annotation!

In order to connect to Eureka, we have to provide the registry’s address. this is made by configuring a YAML file, called application.yml, that we put it on the resources source folder. We also configure a application name on this file, in order to inform Eureka about what Application’s ID we would like to use for the microservice.

So, in order to make this configuration, we create the files on our projects. seeing a example, for the Order’s service, we have the following YAML configuration:

spring:
 application:
 name: OrderService
eureka:
 client:
 serviceUrl:
 defaultZone: http://eureka:8761/eureka/

Notice that when we configure Eureka’s address, we used “eureka” as the host name. This is the name of the container that we will use in order to deploy the Eureka server on our Docker Network, so on the /etc/hosts files of our containers, this name will be mapped to Eureka’s container IP, making it possible to point it out dynamically.

Now let’s see how our Microservices were implemented. For the Customer service, we have the following code:

@RestController
@RequestMapping("/")
public class CustomerRest {

private static List<Customer> clients = new ArrayList<Customer>();

static {
Customer customer1 = new Customer();
 customer1.setId(1);
 customer1.setName("Cliente 1");
 customer1.setEmail("customer1@gmail.com");

Customer customer2 = new Customer();
 customer2.setId(2);
 customer2.setName("Cliente 2");
 customer2.setEmail("customer2@gmail.com");

Customer customer3 = new Customer();
 customer3.setId(3);
 customer3.setName("Cliente 3");
 customer3.setEmail("customer3@gmail.com");

Customer customer4 = new Customer();
 customer4.setId(4);
 customer4.setName("Cliente 4");
 customer4.setEmail("customer4@gmail.com");

Customer customer5 = new Customer();
 customer5.setId(5);
 customer5.setName("Cliente 5");
 customer5.setEmail("customer5@gmail.com");

clients.add(customer1);
 clients.add(customer2);
 clients.add(customer3);
 clients.add(customer4);
 clients.add(customer5);
}

@RequestMapping(method = RequestMethod.GET, produces = MediaType.APPLICATION_JSON_VALUE)
 public List<Customer> getClientes() {
 return clients;
 }

@RequestMapping(value = "customer/{id}", method = RequestMethod.GET, produces = MediaType.APPLICATION_JSON_VALUE)
 public Customer getCliente(@PathVariable long id) {

Customer cli = null;

for (Customer c : clients) {

if (c.getId() == id)
 cli = c;

}

return cli;
 }
}

As we can see, nothing out of normal, very simple usage of Spring’s REST Controllers. Now, on to the Product service:

@RestController
@RequestMapping("/")
public class ProductRest {

private static List<Product> products = new ArrayList<Product>();

static {

Product product1 = new Product();
 product1.setId(1);
 product1.setSku("abcd1");
 product1.setDescription("Produto1");

Product product2 = new Product();
 product2.setId(2);
 product2.setSku("abcd2");
 product2.setDescription("Produto2");

Product product3 = new Product();
 product3.setId(3);
 product3.setSku("abcd3");
 product3.setDescription("Produto3");

Product product4 = new Product();
 product4.setId(4);
 product4.setSku("abcd4");
 product4.setDescription("Produto4");

products.add(product1);
 products.add(product2);
 products.add(product3);
 products.add(product4);

}

@RequestMapping(method = RequestMethod.GET, produces = MediaType.APPLICATION_JSON_VALUE)
 public List<Product> getProdutos() {
 return products;
 }

@RequestMapping(value = "product/{id}", method = RequestMethod.GET, produces = MediaType.APPLICATION_JSON_VALUE)
 public Product getProduto(@PathVariable long id) {

Product prod = null;

for (Product p : products) {

if (p.getId() == id)
 prod = p;

}

return prod;
 }

}

Again, nothing unusual on the code. Now, let’s see the Order service, where we will see the registry been used for consuming microservices:

@RestController
@RequestMapping("/")
public class OrderRest {

private static long id = 1;

// Created automatically by Spring Cloud
 @Autowired
 @LoadBalanced
 private RestTemplate restTemplate;

private Logger logger = Logger.getLogger(OrderRest.class);

@RequestMapping(value = "order/{idCustomer}/{idProduct}/{amount}", method = RequestMethod.GET, produces = MediaType.APPLICATION_JSON_VALUE)
 public Order submitOrder(@PathVariable long idCustomer, @PathVariable long idProduct, @PathVariable long amount) {

Order order = new Order();

 Map map = new HashMap();

 map.put("id", idCustomer);

ResponseEntity<Customer> customer = restTemplate.exchange("http://CUSTOMERSERVICE/customer/{id}",
 HttpMethod.GET, null, Customer.class, map);

 map = new HashMap();

 map.put("id", idProduct);

ResponseEntity<Product> product = restTemplate.exchange("http://PRODUCTSERVICE/product/{id}", HttpMethod.GET,
 null, Product.class, map);

order.setCustomer(customer.getBody());
order.setProduct(product.getBody());
order.setId(id);
order.setAmount(amount);
order.setOrderDate(new Date());

logger.warn("The order " + id + " for the client " + customer.getBody().getName() + " with the product "
 + product.getBody().getSku() + " with the amount " + amount + " was created!");

id++;

return order;
 }
}

The first thing we notice is the autowired RestTemplate, that also has a@LoadBalanced annotation. This RestTemplate is automatically instantiated by Spring Cloud, creating a interface which we could use to communicate with Eureka. The annotation informs that we want to use Ribbon to make the load balance, in case we have a cluster of instances of the same service.

The exchange method we use inside of the submitOrder method is where the magic happens. When we make our calls using this method, internally a lookup is made with the Eureka Server, the addresses of the service are passed to Ribbon in order to load balance the calls, and them the call is made. Notice that we used names like “CUSTOMERSERVICE” as the host address on our URIs. This pattern tells the framework the ID of the application we really want to call, been replaced at runtime with one of the IP addresses of the service we want to call.

And that concludes our quick explanation of the Java code involved on our lab. Again, if the reader want to get the full code, just head for the Github repositories at the end of this post. In order to run the lab, I recommend that you clone the whole repository and execute a mvn package command on each of the 3 projects. If you don’t have Maven, you can get it from here.

Launching the containers

Now that we are almost finished with the lab, it is time for the fun part: run our containers! To do this, we will use docker-compose. With docker-compose, we can start/stop/kill etc full stacks of containers, without having to instantiate everything by hand. In order to make our docker-compose stack, let’s create a YAML file called docker-compose.yml and include the following configuration:

eureka:
 image: springcloud/eureka
 container_name: eureka
 ports:
 - "8761:8761"
 net: "microservicesnet"
customer1:
 image: alexandreesl/microservices-spring-boot-base
 container_name: customer1
 hostname: customer1
 net: "microservicesnet"
 ports:
 - "8080:8080"
 volumes:
 - /Users/alexandrelourenco/Applications/git/docker-handson:/data
 command: -jar /data/Customer-backend/target/Customer-backend-1.0.jar
product1:
 image: alexandreesl/microservices-spring-boot-base
 container_name: product1
 hostname: product1
 net: "microservicesnet"
 ports:
 - "8081:8080"
 volumes:
 - /Users/alexandrelourenco/Applications/git/docker-handson:/data
 command: -jar /data/Product-backend/target/Product-backend-1.0.jar
order1:
 image: alexandreesl/microservices-spring-boot-base
 container_name: order1
 hostname: order1
 net: "microservicesnet"
 ports:
 - "8082:8080"
 volumes:
 - /Users/alexandrelourenco/Applications/git/docker-handson:/data
 command: -jar /data/Order-backend/target/Order-backend-1.0.jar

Some things to notice from our configuration:

In all the containers we configured our “microservicesnet” network, in order to use the Docker Network feature to resolve our needs;
On the MicroService’s containers, we also defined the hostname, to force Spring Cloud’s registration control to properly register the correct alias for the service’s addresses;
We have exposed Eureka’s port to the physical host at 8761, so we can see the web interface from outside the Docker environment;
On the volumes sections, I have mapped the base folder where my Maven projects from the microservices are placed, binding to the /data folder inside the container, which is defined as the workdir on the image we created previously. This way, on the command section, when we map the location of the microservice’s Spring Boot jar, we map the location from the /data folder;

Finally, after saving our file, we run the script by simply running the following command, at the same folder of the YAML file:

docker-compose up

We will see some information about our containers getting up and at the end we will see some log information from all the containers mixed, with the name of the container as a prefix for identification:

After waiting some moments we will see our containers are up. Let’s see if the microservices are up? Let’s open a browser and point it to the port 8761, using localhost or the ip used by Docker in case you are in OSX/Windows:

Excellent! Not only has Eureka booted up successfully, but also all of our services have registered with it. Let’s now toy a little with our stack, to test it out.

Let’s begin by making a search for a customer of ID 1 on the Customer’s service:

curl -XGET 'http://<your ip>:8080/customer/1'

This will produce a JSON response like the following:

{"id":1,"name":"Cliente 1","email":"customer1@gmail.com"}

Next, let’s test out the Product service, with a call for the details of the Product of ID 4:

curl -XGET 'http://<your ip>:8081/product/4'

This time it will produce a response like the following:

{"id":4,"sku":"abcd4","description":"Produto4"}

Finally, the moment of true: let’s call the Order service, that utilises our other 2 services, to see if the service’s addresses are resolved with Eureka’s help. To test it, let’s make the following call:

curl -XGET 'http://<your ip>:8082/order/2/1/4'

If everything goes well, we will see a response like:

{"id":1,"amount":4,"orderDate":1452216090392,"customer":{"id":2,"name":"Cliente 2","email":"customer2@gmail.com"},"product":{"id":1,"sku":"abcd1","description":"Produto1"}}

Success! But can we have further proof? If we see the logs from the Order1 container, we can see some logs showing Ribbon in action, searching for the services we need on the call and initializing load balancers, in order to serve our needs:

Let’s make one last test before closing in: let’s add one more instance of the Product’s service, to see if the new instance is registered under the same application ID. To do this, let’s run the following command. Notice that we didn’t specify the port to expose the service, since we just want to add up the instance to load balance the internal calls from the Order service:

docker run --rm --name product2 --hostname=product2 --net=microservicesnet -v /Users/alexandrelourenco/Applications/git/docker-handson:/data alexandreesl/microservices-spring-boot-base -jar /data/Product-backend/target/Product-backend-1.0.jar

If we open the Eureka web interface again, we will see that the second address is mapped:

Finally, to test the balance, let’s make a call of the previous URL of the Order service. After the call, we will see that our service is aware of both addresses, proving that the balance is implemented, as we can see on the log’s fragment bellow:

[2016-01-08 14:14:09.703] boot – 1 INFO [http-nio-8080-exec-1] — ChainedDynamicProperty: Flipping property: PRODUCTSERVICE.ribbon.ActiveConnectionsLimit to use NEXT property: niws.loadbalancer.availabilityFilteringRule.activeConnectionsLimit = 2147483647

[2016-01-08 14:14:09.709] boot – 1 INFO [http-nio-8080-exec-1] — BaseLoadBalancer: Client:PRODUCTSERVICE instantiated a LoadBalancer:DynamicServerListLoadBalancer:{NFLoadBalancer:name=PRODUCTSERVICE,current list of Servers=[],Load balancer stats=Zone stats: {},Server stats: []}ServerList:null

[2016-01-08 14:14:09.714] boot – 1 INFO [http-nio-8080-exec-1] — ChainedDynamicProperty: Flipping property: PRODUCTSERVICE.ribbon.ActiveConnectionsLimit to use NEXT property: niws.loadbalancer.availabilityFilteringRule.activeConnectionsLimit = 2147483647

[2016-01-08 14:14:09.718] boot – 1 INFO [http-nio-8080-exec-1] — DynamicServerListLoadBalancer: DynamicServerListLoadBalancer for client PRODUCTSERVICE initialized: DynamicServerListLoadBalancer:{NFLoadBalancer:name=PRODUCTSERVICE,current list of Servers=[product1:8080, product2:8080],Load balancer stats=Zone stats: {defaultzone=[Zone:defaultzone; Instance count:2; Active connections count: 0; Circuit breaker tripped count: 0; Active connections per server: 0.0;]

},Server stats: [[Server:product2:8080; Zone:defaultZone; Total Requests:0; Successive connection failure:0; Total blackout seconds:0; Last connection made:Thu Jan 01 00:00:00 UTC 1970; First connection made: Thu Jan 01 00:00:00 UTC 1970; Active Connections:0; total failure count in last (1000) msecs:0; average resp time:0.0; 90 percentile resp time:0.0; 95 percentile resp time:0.0; min resp time:0.0; max resp time:0.0; stddev resp time:0.0]

, [Server:product1:8080; Zone:defaultZone; Total Requests:0; Successive connection failure:0; Total blackout seconds:0; Last connection made:Thu Jan 01 00:00:00 UTC 1970; First connection made: Thu Jan 01 00:00:00 UTC 1970; Active Connections:0; total failure count in last (1000) msecs:0; average resp time:0.0; 90 percentile resp time:0.0; 95 percentile resp time:0.0; min resp time:0.0; max resp time:0.0; stddev resp time:0.0]

]}ServerList:org.springframework.cloud.netflix.ribbon.eureka.DomainExtractingServerList@2561f098

[2016-01-08 14:14:09.738] boot – 1 INFO [http-nio-8080-exec-1] — ConnectionPoolCleaner: Initializing ConnectionPoolCleaner for NFHttpClient:PRODUCTSERVICE

And that concludes our lab. As we can see, we builded a robust stack to deploy our microservices with their dependencies, with little effort.

Clustering container hosts

In all of our examples, we are always working with a single Docker host, our own machine on the case. On a real production environment, we can have some dozens or even hundreds of Docker hosts. In order to make all the hosts to work together, it is necessary to implement some layer that manages the hosts, making them appear as a single cluster to the consumers.

This is the goal of Docker Swarm. With Docker Swarm, we can connect multiple Docker hosts across a network, using them as a single cluster by using Docker Swarm’s interface.

For further information about Docker Swarm alongside a good example of utilization, I suggest consulting the excellent “The Docker Book”, which I describe on the next section.

References

This post was inspired by my studies on Docker with The Docker Book, written by James Turnbull. It is a excellent source of information, that I highly recommend to buy it! You can find the book available to purchase online on:

www.dockerbook.com

Conclusion

And this concludes our tour on the world of Docker. With a simple interface, Docker allows us to use all the power of the container world, allowing us to quickly deploy and escalate our applications. Never it was so simple to deploy our applications! Thank you for following me on another post, until next time.

Hands-on: Implementing MicroServices with Spring Boot

Welcome, dear reader, to another post from my technology blog. In this post, we will talk about an interesting architectural model, the microservices architecture, in addition to studying one of the new features of Spring 4.0, Spring Boot. But after all, what are microservices?

Microservices

In the development of large systems, it is common to develop various components and libraries that implement various functions, ranging from implementing business requirements to technical tasks, such as an XML parser, for example. In these scenarios, several components are reused by different interfaces and / or systems. Imagine, for example, a component that implements a register of customers and we package this component in a java project, which generates a deliverable jar file.

In this scenario, we have several interfaces to use this component, such as web applications, mobile, EJBs, etc. In the traditional form of Java implementation, we would package this jar deploy in several other packages, such as EAR files, WAR files, etc. Imagine now that a problem in the customer code is found. In this scenario, we have a considerable operational maintenance work, since as well as the correction on the component, we would have to make the redeploy of all consumer applications due to the component to be packaged inside the other deployment packages.

In order to propose a solution to this issue, was born the microservices architecture model. In this architectural model, rather than packaging the components as jar files to be packaged into consumer systems, the components are independently exposed in the form of remote accessibility APIs, consumed using protocols such as HTTP, for example. The figure below illustrates this architecture:

An important point to note in the above explanations, is that although we are exemplifying the model using the Java world, the same principles can be applied to other technologies such as C #, etc.

Spring Boot

Among the new features in version 4.0 of the Spring Framework, a new project that has arisen is the Spring Boot.The goal of Spring Boot is to provide a way to provide Java applications quickly and simply, through an embedded server – by default it used an embedded version of Tomcat – thus eliminating the need of Java EE containers. With Spring Boot, we can expose components such as REST services independently, exactly as proposed in the microservices architecture, so that in any maintenance of the components, we no longer make the redeploy of all its consumers.

So without further delay, let’s begin our hands-on. For this lab, we will use the Eclipse Luna and Maven 3 .

To illustrate the concept of microservices, we will create 3 Maven projects in this hands-on: each of them will symbolize back-end functionality, ie reusable APIs, and one of them held a composition, that is, will be a consumer of the other 2. All the code that will be presented is available in the links section at the end of this post.

To begin, let’s create 3 simple Maven projects without defined archetype, and let’s call them Product-backend, Customer-backend and Order-backend. In the poms of the 3 projects, we will add the dependencies for the creation of our REST services and the startup of Spring Boot, as we can see below:

.

.

.

<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>1.2.0.RELEASE</version>
</parent>

<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jersey</artifactId>
</dependency>
</dependencies>

.

.

.

With the dependencies established, we start the coding. The first class that we create, that we call Application, will be identical in all three projects, because it only works as an initiator to Spring Boot – as defined by the @SpringBootApplication annotation – starting a Spring context and the embedded server:

package br.com.alexandreesl.handson;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Application {
public static void main(String[] args) {
SpringApplication.run(Aplication.class, args);
}
}

The next class we will see is the ApplicationConfig. In this class, which uses the @Configuration Spring annotation to indicate to the framework that it is a resource configuration class, we set the Jersey, which is our ResourceManager responsible for exposing REST services for application consumers.

In a real application, this class would be also creating datasources for access to databases and other resources, but in order to keep a hands-on simple enough to be able to focus on the Spring Boot, we will use mocks to represent the data access.

package br.com.alexandreesl.handson;

import javax.inject.Named;

import org.glassfish.jersey.server.ResourceConfig;
import org.springframework.context.annotation.Configuration;

@Configuration
public class ApplicationConfig {

@Named
static class JerseyConfig extends ResourceConfig {
public JerseyConfig() {
this.packages(“br.com.alexandreesl.handson.rest”);
}
}

}

The above class will be used identically in the projects relating to customers and products. For orders, however, since it will be a consumer of the other services, we will use this class with a slight difference, as we will also instantiate a RestTemplate. This class, one of the novelties in the Spring Framework, is a standardized and very simple interface that facilitates the consumption of REST services. The class to use in the Order-backend project can be seen below:

package br.com.alexandreesl.handson;

import javax.inject.Named;

import org.glassfish.jersey.server.ResourceConfig;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ApplicationConfig {

@Named
static class JerseyConfig extends ResourceConfig {
public JerseyConfig() {
this.packages(“br.com.alexandreesl.handson.rest”);
}
}

@Bean
public RestTemplate restTemplate() {
RestTemplate restTemplate = new RestTemplate();

return restTemplate;
}

}

Finally, we will start the implementation of the REST services themselves. In the project Customer-backend, we create a class of DTO and a REST service. The class, which is a customer, is a simple POJO, as seen below:

package br.com.alexandreesl.handson.rest;

public class Customer {

private long id;

private String name;

private String email;

public long getId() {
return id;
}

public void setId(long id) {
this.id = id;
}

public String getName() {
return name;
}

public void setName(String name) {
this.name = name;
}

public String getEmail() {
return email;
}

public void setEmail(String email) {
this.email = email;
}

}

The REST service, in turn, has only 2 capabilities, a search of all customers and other search that query a customer from your id:

package br.com.alexandreesl.handson.rest;

import java.util.ArrayList;
import java.util.List;

import javax.inject.Named;
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.QueryParam;
import javax.ws.rs.core.MediaType;

@Named
@Path(“/”)
public class CustomerRest {

private static List<Customer> clients = new ArrayList<Customer>();

static {

Customer customer1 = new Customer();
customer1.setId(1);
customer1.setName(“Cliente 1”);
customer1.setEmail(“customer1@gmail.com”);

Customer customer2 = new Customer();
customer2.setId(2);
customer2.setName(“Cliente 2”);
customer2.setEmail(“customer2@gmail.com”);

Customer customer3 = new Customer();
customer3.setId(3);
customer3.setName(“Cliente 3”);
customer3.setEmail(“customer3@gmail.com”);

Customer customer4 = new Customer();
customer4.setId(4);
customer4.setName(“Cliente 4”);
customer4.setEmail(“customer4@gmail.com”);

Customer customer5 = new Customer();
customer5.setId(5);
customer5.setName(“Cliente 5”);
customer5.setEmail(“customer5@gmail.com”);

clients.add(customer1);
clients.add(customer2);
clients.add(customer3);
clients.add(customer4);
clients.add(customer5);

}

@GET
@Produces(MediaType.APPLICATION_JSON)
public List<Customer> getClientes() {
return clients;
}

@GET
@Path(“customer”)
@Produces(MediaType.APPLICATION_JSON)
public Customer getCliente(@QueryParam(“id”) long id) {

Customer cli = null;

for (Customer c : clients) {

if (c.getId() == id)
cli = c;

}

return cli;
}

}

And that concludes our REST service for searching the customers. For the products, analogous to the customers, we have to search all products or one product through one of his ids and finally we have the order service, which through a “submitOrder” method gets the data of a product and a customer – whose keys are passed as parameters to the method – and return a order header. The classes that make up our product service within its Product-backend project are the following:

package br.com.alexandreesl.handson.rest;

public class Product {

private long id;

private String sku;

private String description;

public long getId() {
return id;
}

public void setId(long id) {
this.id = id;
}

public String getSku() {
return sku;
}

public void setSku(String sku) {
this.sku = sku;
}

public String getDescription() {
return description;
}

public void setDescription(String description) {
this.description = description;
}

}

package br.com.alexandreesl.handson.rest;

import java.util.ArrayList;
import java.util.List;

import javax.inject.Named;
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.QueryParam;
import javax.ws.rs.core.MediaType;

@Named
@Path(“/”)
public class ProductRest {

private static List<Product> products = new ArrayList<Product>();

static {

Product product1 = new Product();
product1.setId(1);
product1.setSku(“abcd1”);
product1.setDescription(“Produto1”);

Product product2 = new Product();
product2.setId(2);
product2.setSku(“abcd2”);
product2.setDescription(“Produto2”);

Product product3 = new Product();
product3.setId(3);
product3.setSku(“abcd3”);
product3.setDescription(“Produto3”);

Product product4 = new Product();
product4.setId(4);
product4.setSku(“abcd4”);
product4.setDescription(“Produto4”);

products.add(product1);
products.add(product2);
products.add(product3);
products.add(product4);

}

@GET
@Produces(MediaType.APPLICATION_JSON)
public List<Product> getProdutos() {
return products;
}

@GET
@Path(“product”)
@Produces(MediaType.APPLICATION_JSON)
public Product getProduto(@QueryParam(“id”) long id) {

Product prod = null;

for (Product p : products) {

if (p.getId() == id)
prod = p;

}

return prod;
}

}

Finally, the classes that make up our aforementioned order service in the Order-backend project are:

package br.com.alexandreesl.handson.rest;

import java.util.Date;

public class Order {

private long id;

private long amount;

private Date orderDate;

private Customer customer;

private Product product;

public long getId() {
return id;
}

public void setId(long id) {
this.id = id;
}

public long getAmount() {
return amount;
}

public void setAmount(long amount) {
this.amount = amount;
}

public Date getOrderDate() {
return orderDate;
}

public void setOrderDate(Date orderDate) {
this.orderDate = orderDate;
}

public Customer getCustomer() {
return customer;
}

public void setCustomer(Customer customer) {
this.customer = customer;
}

public Product getProduct() {
return product;
}

public void setProduct(Product product) {
this.product = product;
}

}

package br.com.alexandreesl.handson.rest;

import java.util.Date;

import javax.inject.Inject;
import javax.inject.Named;
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.QueryParam;
import javax.ws.rs.core.MediaType;

import org.springframework.web.client.RestTemplate;

@Named
@Path(“/”)
public class OrderRest {

private static long id = 1;

@Inject
private RestTemplate restTemplate;

@GET
@Path(“order”)
@Produces(MediaType.APPLICATION_JSON)
public Order submitOrder(@QueryParam(“idCustomer”) long idCustomer,
@QueryParam(“idProduct”) long idProduct,
@QueryParam(“amount”) long amount) {

Order order = new Order();

Customer customer = restTemplate.getForObject(
“http://localhost:8081/customer?id={id}”, Customer.class,
idCustomer);

Product product = restTemplate.getForObject(
“http://localhost:8082/product?id={id}”, Product.class,
idProduct);

order.setCustomer(customer);
order.setProduct(product);
order.setId(id);
order.setAmount(amount);
order.setOrderDate(new Date());

id++;

return order;
}
}

The reader should note the use of the product and customer classes in our order service. Such classes, however, are not direct references of the classes implemented in the other projects, but classes “cloned” from the original, within the order project. This apparent duplication of code in the DTO classes, sure to be a negative aspect of the solution, which can be seen as similar as stub classes we see in JAX-WS clients, must be measured carefully as it can be considered a small price to pay, considering the problems we see if we make the coupling of the projects.

A half solution that can minimize this problem, is to create a aditional project for the domain classes, which would be imported by all other projects, as the domain classes must undergo much lower maintenance than functionality itself. I leave it to the readers to assess the best option, according to the characteristics of their projects.

Good, but after all this coding, lets get down to, which is to test our services!

To begin, let’s start our REST services. For this, we create run configurations in Eclipse – like the image below – where we will add a system property, which specify the port where the spring boot will start the process. In my environment, I started the customer service on port 8081, the products in 8082 and the orders on port 8083, but the reader is free to use the most appropriate ports for his environment. The property to be used to configure the port is:

-Dserver.port=8081

PS: If the reader change the ports, you must correct the ports of the calls in the order service code.

With properly configured run configurations, we will start processing and test some calls to our REST. Simply click on each run configuration created, one at a time, which will generate 3 different console windows running in the Eclipse console window. As we see below, when we started the projects, Spring Boot generates a boot log, where you can see the embedded tomcat and its associated resources, such as Jersey, being initialized:

After booting the services, we can run them through the browser in order to test our implementation. For example, to test the query of all customers, if we type in the browser the following URL:

http://localhost:8081/

Obteremos como retorno a seguinte estrutura JSON:

[{"id":1,"nome":"Cliente 1","email":"cliente1@gmail.com"},{"id":2,"nome":"Cliente 2","email":"cliente2@gmail.com"},{"id":3,"nome":"Cliente 3","email":"cliente3@gmail.com"},{"id":4,"nome":"Cliente 4","email":"cliente4@gmail.com"},{"id":5,"nome":"Cliente 5","email":"cliente5@gmail.com"}]

Consisting of all registered customers in our mocks structure, showing that our service is working properly. To test the method that returns one particular customer from a id, we can enter a URL like the one below:

http://localhost:8081/customer?id=3

That returns a JSON with the customer data:

{"id":3,"nome":"Cliente 3","email":"cliente3@gmail.com"}

Similarly, to test if the product service is functioning properly, please call the URL:

http://localhost:8082/

Which produces the following result in JSON:

[{"id":1,"sku":"abcd1","descricao":"Produto1"},{"id":2,"sku":"abcd2","descricao":"Produto2"},{"id":3,"sku":"abcd3","descricao":"Produto3"},{"id":4,"sku":"abcd4","descricao":"Produto4"}]

Finally, to test the functionality of the order service we make a call, which through, for example, we simulate a order in which a customer of ID 2 wants the product of ID 3, and the amount of 4:

http://localhost:8083/order?idCustomer=2&idProduct=3&amount=4

We produce the following JSON, representing the header of a order effected:

{"id":1,"amount":4,"orderDate":1419530726399,"customer":{"id":2,"name":"Cliente 2","email":"customer2@gmail.com"},"product":{"id":3,"sku":"abcd3","description":"Produto3"}}

At this point, the reader may notice a bug in our order service: subsequent calls will generate the same orders with the same IDs! This is due to our mock variable that generates the ids be declared as a global variable that is recreated every new instance of the class. As REST services have request scope, every request generates a new instance, which means that the variable is never incremented through the calls. One of the simplest ways of fixing this bug is declaring the variable as static, but before we do that, let’s take a moment to think like the fact that we have implemented our services as microservices – yes, they are microservices! – Can help us in our maintenance:

– If we were in a traditional implementation, each of these components would be a jar file encapsulated within a client application such as a web application (WAR);

– Thus, for fixing this bug, and correcting the order code, we would also redeploy the product code, the customer code and the web application itself! The advantages become even more apparent if we consider that the application would have many more features in addition to the problematic one, which would make the redeploy of all the others, causing a complete unavailability of our system during reimplantation;

So, having realized the advantages of our construction format, we will initiate the maintenance. During the procedure, we will make the stop and restart of our order service in order to demonstrate how microservices do not affect each other’s availability.

To begin our maintenance, we will terminate the Spring Boot process of our order service. To do this, we simply select the corresponding console window and terminate it. If we call the URL of the order service, we have the following error message, indicating the unavailability:

However, if we try to call the product and customer services, we see that both are operational, proving the independence thereof.

Then we make the maintenance, changing the variable to the static type:

.

.

.

private static long id = 1;

.

.

.

Finally, we make a restart of the order service, with the implemented correction. If we run several calls to the URL of the service, we see that the service is generating orders with different IDs, proving that the fix was a success:

{"id":9,"amount":4,"orderDate":1419531614702,"customer":{"id":2,"name":"Cliente 2","email":"customer2@gmail.com"},"product":{"id":3,"sku":"abcd3","description":"Produto3"}}

We realize, with this simple example, that the microservices architecture brought us a powerful solution: you can stop, correct / evolve and start new versions of the components, without thereby requiring the redeployment of the whole system and its totally unavailable. Not to mention, that since we are using standard protocols such as HTTP to communicate, we could even use other technologies, like C# for example, to make a web front-end to our system.

Going beyond

Recently, I published a new post about microservices, where I demonstrate a evolution of this example, using a service registry to implement service discovery. Please, check it out the post here, I hope the reader will found very interesting!

Conclusion

And so we conclude our hands-on. With a simple but powerful implementation, Spring Boot is a good option to implement a microservices architecture that must be evaluated throughout every Java architect or developer who wants to promote this model in his projects. Thanks to everyone who supported me in this hands-on, until next time.

Technology explained

Technology blog from Alexandre Eleutério Santos Lourenço.

microservices

Akka & Akka Streams: Construa sistemas distribuídos com atores

AWS Lambda: building a serverless back-end on Amazon

Motivation behind AWS Lambda

Limitations

Lab

Project structure

Creating Dynamodb table

Creating CRUD lambdas

Creating S3 lambda to bulk create to Dynamodb

Testing local

Testing on AWS API gateway

Testing as a consumer

Adding security (API keys)

Lambda Logs (CloudWatch)

Conclusion

Backend for Frontends – a microservices pattern

Docker: using containers to implement a Microservices architecture

Hands-on: Implementing MicroServices with Spring Boot
